MerCruiser

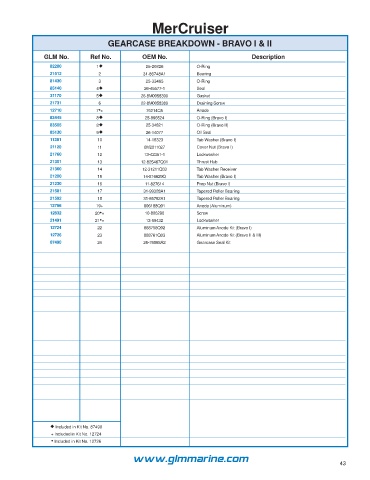

GEARCASE BREAKDOWN - BRAVO I & II
GLM No. Ref No. OEM No. Description
82280 1 25-20826 O-Ring
21512 2 31-86748A1 Bearing
81430 3 25-33465 O-Ring
85140 4 26-45577-1 Seal
31170 5 26-8M0058390 Gasket
21731 6 22-8M0058389 Draining Screw
12710 7•+ 76214Q5 Anode
83445 8 25-896524 O-Ring (Bravo I)
83505 8 25-34821 O-Ring (Bravo II)
85130 9 26-14077 Oil Seal
11381 10 14-18323 Tab Washer (Bravo I)
21120 11 8M2011027 Cover Nut (Bravo I)
21760 12 13-42351-1 Lockwasher
21301 13 12-825467Q01 Thrust Hub
21360 14 12-31211Q03 Tab Washer Receiver
21200 15 14-816629Q Tab Washer (Bravo I)
21230 16 11-827614 Prop Nut (Bravo I)
21581 17 31-99328A1 Tapered Roller Bearing
21592 18 31-86752A1 Tapered Roller Bearing
12756 19+ 806188Q01 Anode (Aluminum)
12832 20•+ 10-806290 Screw
21491 21•+ 13-69432 Lockwasher
12724 22 888758Q02 Aluminum Anode Kit (Bravo I)
12726 23 888761Q03 Aluminum Anode Kit (Bravo II & III)
87490 24 26-76868A2 Gearcase Seal Kit
Included in Kit No. 87490
+ Included in Kit No. 12724
• Included in Kit No. 12726
www.glmmarine.com
43
