MerCruiser

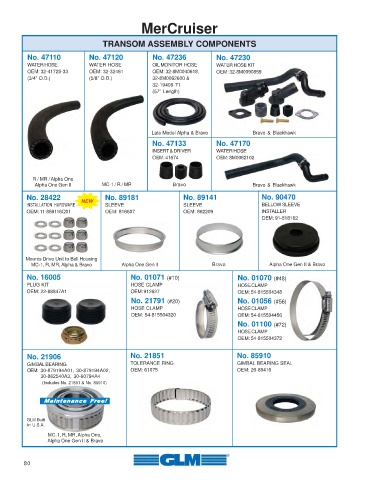

TRANSOM ASSEMBLY COMPONENTS

No. 47110 No. 47120 No. 47236 No. 47230
WATER HOSE WATER HOSE OIL MONITOR HOSE WATER HOSE KIT
OEM: 32-41725-33 OEM: 32-32461 OEM: 32-8M0040618, OEM: 32-8M0090859
(3/4” O.D.) (5/8” O.D.) 32-8M0062600 &
32-19409-71
(57” Length)

Late Model Alpha & Bravo Bravo & Blackhawk
No. 47133 No. 47170
INSERT & DRIVER WATER HOSE
OEM: 41674 OEM: 8M0062102

R / MR / Alpha One
Alpha One Gen II MC-1 / R / MR Bravo Bravo & Blackhawk
No. 28422 NEW No. 89181 No. 89141 No. 90470
INSTALLATION HARDWARE SLEEVE SLEEVE BELLOW SLEEVE
OEM: 11-859116Q01 OEM: 816607 OEM: 862209 INSTALLER
OEM: 91-818162

Mounts Drive Unit to Bell Housing
MC-1, R, MR, Alpha & Bravo Alpha One Gen II Bravo Alpha One Gen II & Bravo
No. 16005 No. 01071 (#10) No. 01070 (#48)
PLUG KIT HOSE CLAMP HOSE CLAMP
OEM: 22-88847A1 OEM: 912627 OEM: 54-815504348
No. 21791 (#20) No. 01056 (#56)
HOSE CLAMP HOSE CLAMP
OEM: 54-815504320 OEM: 54-815504456
No. 01100 (#72)
HOSE CLAMP
OEM: 54-815504372

No. 21906 No. 21851 No. 85910
GIMBAL BEARING TOLERANCE RING GIMBAL BEARING SEAL
OEM: 30-879194A01, 30-879194A02, OEM: 61075 OEM: 26-88416
30-862540A3, 30-60794A4
(Includes No. 21851 & No. 85910)

Maintenance Free!
Maintenance Free!
Maintenance Free!
Maintenance Free!
Maintenance Free!
GLM Built
in U.S.A.
MC-1, R, MR, Alpha One,
Alpha One Gen II & Bravo

80
