MerCruiser

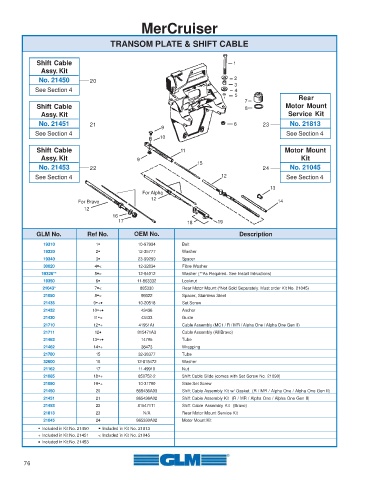

TRANSOM PLATE & SHIFT CABLE

Shift Cable 1
Assy. Kit
No. 21450 20 2
3
See Section 4 4
5 Rear
7
Shift Cable 8 Motor Mount
Assy. Kit Service Kit
No. 21451 21 6 23 No. 21813
9
See Section 4 See Section 4
10
Shift Cable 11 Motor Mount
Assy. Kit 9 Kit
No. 21453 22 15 24 No. 21045
See Section 4 12 See Section 4
13
For Alpha
12
For Bravo 14
12
16
17 18 19

GLM No. Ref No. OEM No. Description
19310 1  10-97934 Bolt
19320 2  12-35777 Washer
19340 3  23-99299 Spacer
30020 4  < 12-32834 Fibre Washer
19326** 5  < 12-54012 Washer (**As Required. See Install Intructions)
19350 6  11-863332 Locknut
21043* 7  < 865330 Rear Motor Mount (*Not Sold Separately. Must order Kit No. 21045)
21050 8  < 99322 Spacer, Stainless Steel
21433 9  +  10-20518 Set Screw
21432 10  +  43436 Anchor
21430 11  + 43433 Guide
21710 12  + 41951A1 Cable Assembly (MC1 / R / MR / Alpha One / Alpha One Gen II)
21711 12  815471A3 Cable Assembly (All Bravo)
21463 13  +  14705 Tube
21462 14  + 38473 Wrapping
21780 15 32-38377 Tube
32600 16 12-815472 Washer
21162 17 11-49910 Nut
21085 18  + 850752-2 Shift Cable Slide (comes with Set Screw No. 21090)
21090 19  + 10-31700 Slide Set Screw
21450 20 865436A03 Shift Cable Assembly Kit w/ Gasket (R / MR / Alpha One / Alpha One Gen II)
21451 21 865436A02 Shift Cable Assembly Kit (R / MR / Alpha One / Alpha One Gen II)
21453 22 815471T1 Shift Cable Assembly Kit (Bravo)
21813 23 N/A Rear Motor Mount Service Kit
21045 24 865330A02 Motor Mount Kit
 Included in Kit No. 21450  Included in Kit No. 21813
+ Included in Kit No. 21451 < Included in Kit No. 21045
 Included in Kit No. 21453

76
