MerCruiser

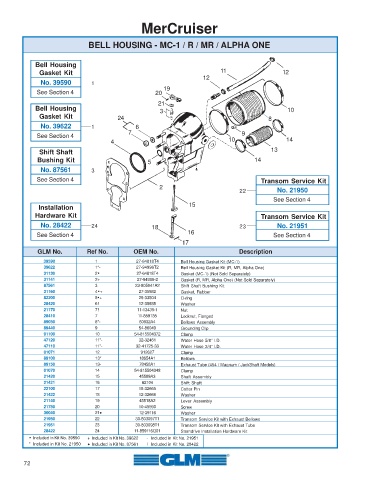

BELL HOUSING - MC-1 / R / MR / ALPHA ONE

Bell Housing
Gasket Kit 12 11 12
No. 39590 1
See Section 4 20 19

21
Bell Housing 3 10
Gasket Kit 24 8
No. 39622 1 6
7 9
See Section 4
4 10 14
Shift Shaft 13
Bushing Kit 5 14
No. 87561 3
See Section 4 Transom Service Kit
2
22 No. 21950
See Section 4
Installation 15
Hardware Kit Transom Service Kit
No. 28422 24 18 23 No. 21951
See Section 4 16 See Section 4
17
GLM No. Ref No. OEM No. Description
39590 1 27-64818T4 Bell Housing Gasket Kit (MC-1)
39622 1*- 27-94996T2 Bell Housing Gasket Kit (R, MR, Alpha One)
31130 2  27-64818T4 Gasket (MC-1) (Not Sold Separately)
31141 2+ 27-94996-2 Gasket (R, MR, Alpha One) (Not Sold Separately)
87561 3 23-805041A2 Shift Shaft Bushing Kit
31160 4  + 27-35982 Gasket, Rubber
82200 5  + 25-33504 O-ring
28420 6! 12-35935 Washer
21170 7! 11-13439-1 Nut
28410 7 11-859135 Locknut, Flanged
89050 8*- 60932A4 Bellows Assembly
89440 9 54-86049 Grounding Clip
01100 10 54-815504372 Clamp
47120 11*- 32-32461 Water Hose 5/8” I.D.
47110 11*- 32-41725-33 Water Hose 3/4” I.D.
01071 12 912627 Clamp
89100 13* 18654A1 Bellows
89150 13- 78458A1 Exhaust Tube (454 / Magnum / JackShaft Models)
01070 14 54-815504348 Clamp
21420 15 45589A3 Shaft Assembly
21421 16 62104 Shift Shaft
22100 17 18-32665 Cotter Pin
21422 18 12-32666 Washer
21140 19 45518A2 Lever Assembly
21750 20 10-45590 Screw
30040 21 12-39116 Washer
21950 22 30-803097T1 Transom Service Kit with Exhaust Bellows
21951 23 30-803098T1 Transom Service Kit with Exhaust Tube
28422 24 11-859116Q01 Sterndrive Installation Hardware Kit
 Included in Kit No. 39590 + Included in Kit No. 39622 - Included in Kit No. 21951
* Included in Kit No. 21950  Included in Kit No. 87561 ! Included in Kit No. 28422
