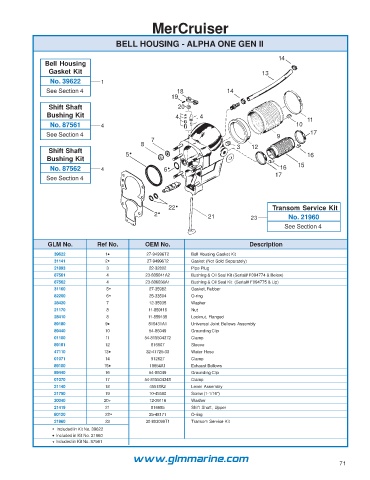

MerCruiser

BELL HOUSING - ALPHA ONE GEN II

14
Bell Housing
Gasket Kit 13
No. 39622 1
See Section 4 18 14
19
Shift Shaft 20
Bushing Kit 4 4 11
No. 87561 4 10
See Section 4 9 17
7
8 3 12
Shift Shaft 5 
Bushing Kit 16
No. 87562 4 6  16 15
See Section 4 17

22  Transom Service Kit
2  21 23 No. 21960
See Section 4

GLM No. Ref No. OEM No. Description
39622 1  27-94996T2 Bell Housing Gasket Kit
31141 2  27-94996T2 Gasket (Not Sold Separately)
21893 3 22-32802 Pipe Plug
87561 4 23-805041A2 Bushing & Oil Seal Kit (Serial# F094774 & Below)
87562 4 23-806036A1 Bushing & Oil Seal Kit (Serial# F094775 & Up)
31160 5  27-35982 Gasket, Rubber
82200 6  25-33504 O-ring
28420 7 12-35935 Washer
21170 8 11-859116 Nut
28410 8 11-859135 Locknut, Flanged
89180 9  816431A1 Universal Joint Bellows Assembly
89440 10 54-86049 Grounding Clip
01100 11 54-815504372 Clamp
89181 12 816607 Sleeve
47110 13  32-41725-33 Water Hose
01071 14 912627 Clamp
89100 15  18654A1 Exhaust Bellows
89440 16 54-86049 Grounding Clip
01070 17 54-815504348 Clamp
21140 18 45518A2 Lever Assembly
21750 19 10-45590 Screw (1-1/16”)
30040 20+ 12-39116 Washer
21419 21 816685 Shift Shaft, Upper
80120 22  25-48171 O-ring
21960 23 30-803099T1 Transom Service Kit
 Included in Kit No. 39622
 Included in Kit No. 21960
+ Included in Kit No. 87561
