MerCruiser

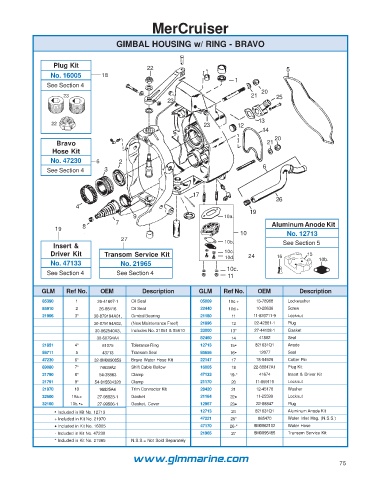

GIMBAL HOUSING w/ RING - BRAVO

Plug Kit 22 5
No. 16005 18
1
See Section 4
20
23 21 25
23

13
22 23 12
14
20
Bravo 21
Hose Kit
No. 47230 6 2
See Section 4 3 6

17
26
4
19
9 10a.
7 Aluminum Anode Kit
19 8
10 No. 12713
27
Insert & 10b. See Section 5
Driver Kit Transom Service Kit 10c. 24 16 15
10d.
No. 47133 No. 21965 10b.
10c.
See Section 4 See Section 4
11
GLM Ref No. OEM Description GLM Ref No. OEM Description

85390 1 26-41607-1 Oil Seal 05009 10c.+ 13-78968 Lockwasher
85910 2 26-88416 Oil Seal 22440 10d.+ 10-28636 Screw
21906 3* 30-879194A01, Gimbal Bearing 21180 11 11-826711-9 Locknut
30-879194A02, (New Maintenance Free!) 21896 12 22-42861-1 Plug
30-862540A3, Includes No. 21851 & 85910 33000 13* 27-44108-1 Gasket
30-60794A4 82460 14 41802 Seal
21851 4* 61075 Tolerance Ring 12713 15  821631Q1 Anode
86711 5 43713 Transom Seal 85656 16  12077 Seal
47230 6* 32-8M0090859 Bravo Water Hose Kit 22147 17 18-54929 Cotter Pin
89080 7* 74639A2 Shift Cable Bellow 16005 18 22-88847A1 Plug Kit
21790 8* 54-38863 Clamp 47133 19-* 41674 Insert & Driver Kit
21791 9* 54-815504320 Clamp 21170 20 11-859116 Locknut
21970 10 98825A4 Trim Connector Kit 28420 21 12-45176 Washer
32500 10a.+ 27-98823-1 Gasket 21164 22  11-25599 Locknut
32160 10b.  + 27-99506-1 Gasket, Cover 12967 23  22-88847 Plug
 Included in Kit No. 12713 12713 24 821631Q1 Aluminum Anode Kit
+ Included in Kit No. 21970 47221 25* 865470 Water Inlet Hsg. (N.S.S.)
 Included in Kit No. 16005 47170 26-* 8M0062102 Water Hose
- Included in Kit No. 47230 21965 27 8M0095485 Transom Service Kit
* Included in Kit No. 21965 N.S.S.= Not Sold Separately

www.glmmarine.com
75
