MerCruiser

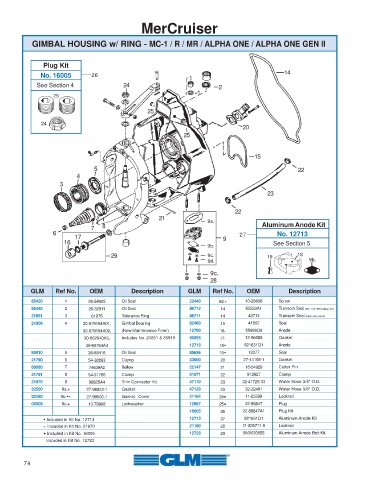

GIMBAL HOUSING w/ RING - MC-1 / R / MR / ALPHA ONE / ALPHA ONE GEN II

Plug Kit
No. 16005 26 14
See Section 4 24 2
1
25

25

24
20
25

15
5 22
4
3
23

22
21 9a.
7 8 Aluminum Anode Kit
6 27 No. 12713
17 9
16 See Section 5
9b.
29 9c. 19 18
9d. 9b.

9c.
28
GLM Ref No. OEM Description GLM Ref No. OEM Description

85420 1 26-54925 Oil Seal 22440 9d.+ 10-28636 Screw
85440 2 26-32911 Oil Seal 86712 14 65533A1 Transom Seal (MC-1 / R / MR / Alpha One)
21851 3 61075 Tolerance Ring 86711 14 43713 Transom Seal (Alpha One Gen II)
21906 4 30-879194A01, Gimbal Bearing 82460 15 41802 Seal
30-879194A02, (New Maintenance Free!) 12700 16- 55989Q9 Anode
30-862540A3, Includes No. 21851 & 85910 30355 17- 12-56085 Gasket
30-60794A4 12713 18  821631Q1 Anode
85910 5 26-88416 Oil Seal 85656 19  12077 Seal
21790 6 54-38863 Clamp 33000 20 27-44108-1 Gasket
89080 7 74639A2 Bellow 22147 21 18-54929 Cotter Pin
21791 8 54-31766 Clamp 01071 22 912627 Clamp
21970 9 98825A4 Trim Connector Kit 47110 23 32-41725-33 Water Hose 3/4” O.D.
32500 9a.+ 27-98823-1 Gasket 47120 23 32-32461 Water Hose 5/8” O.D.
32160 9b.  + 27-99506-1 Gasket, Cover 21164 24  11-25599 Locknut
05009 9c.+ 13-78968 Lockwasher 12967 25  22-88847 Plug
16005 26 22-88847A1 Plug Kit
 Included in Kit No. 12713 12713 27 821631Q1 Aluminum Anode Kit
+ Included in Kit No. 21970 21180 28 11-826711-9 Locknut
 Included in Kit No. 16005 12723 29 8M0030655 Aluminum Anode Bolt Kit
- Included in Kit No. 12723

74
