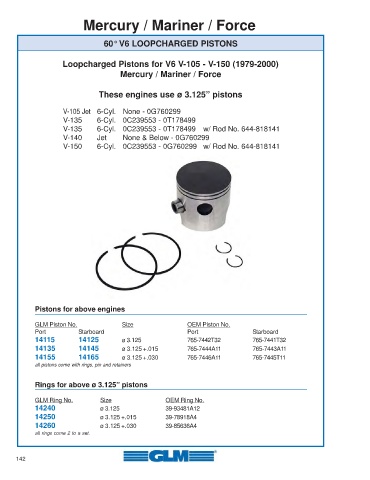

Page 142 - MercMarForc_Catalog_Flipbook

Mercury / Mariner / Force

60° V6 LOOPCHARGED PISTONS

Loopcharged Pistons for V6 V-105 - V-150 (1979-2000)
Mercury / Mariner / Force

These engines use ø 3.125” pistons

V-105 Jet 6-Cyl. None - 0G760299
V-135 6-Cyl. 0C239553 - 0T178499
V-135 6-Cyl. 0C239553 - 0T178499 w/ Rod No. 644-818141
V-140 Jet None & Below - 0G760299
V-150 6-Cyl. 0C239553 - 0G760299 w/ Rod No. 644-818141

Pistons for above engines

GLM Piston No. Size OEM Piston No.
Port Starboard Port Starboard
14115 14125 ø 3.125 765-7442T32 765-7441T32
14135 14145 ø 3.125 +.015 765-7444A11 765-7443A11
14155 14165 ø 3.125 +.030 765-7446A11 765-7445T11
all pistons come with rings, pin and retainers

Rings for above ø 3.125” pistons

GLM Ring No. Size OEM Ring No.
14240 ø 3.125 39-93481A12
14250 ø 3.125 +.015 39-78918A4
14260 ø 3.125 +.030 39-85636A4
all rings come 2 to a set.
