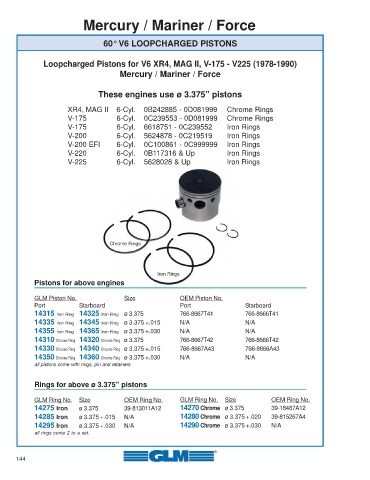

Page 144 - MercMarForc_Catalog_Flipbook

Mercury / Mariner / Force

60° V6 LOOPCHARGED PISTONS

Loopcharged Pistons for V6 XR4, MAG II, V-175 - V225 (1978-1990)
Mercury / Mariner / Force

These engines use ø 3.375” pistons

XR4, MAG II 6-Cyl. 0B242885 - 0D081999 Chrome Rings
V-175 6-Cyl. 0C239553 - 0D081999 Chrome Rings
V-175 6-Cyl. 6618751 - 0C239552 Iron Rings
V-200 6-Cyl. 5624878 - 0C219519 Iron Rings
V-200 EFI 6-Cyl. 0C100861 - 0C999999 Iron Rings
V-220 6-Cyl. 0B117316 & Up Iron Rings
V-225 6-Cyl. 5628028 & Up Iron Rings

Chrome Rings

Iron Rings
Pistons for above engines

GLM Piston No. Size OEM Piston No.
Port Starboard Port Starboard
14315 Iron Ring 14325 Iron Ring ø 3.375 766-8667T41 766-8666T41
14335 Iron Ring 14345 Iron Ring ø 3.375 +.015 N/A N/A
14355 Iron Ring 14365 Iron Ring ø 3.375 +.030 N/A N/A
14310 Chrome Ring 14320 Chrome Ring ø 3.375 766-8667T42 766-8666T42
14330 Chrome Ring 14340 Chrome Ring ø 3.375 +.015 766-8667A43 766-8666A43
14350 Chrome Ring 14360 Chrome Ring ø 3.375 +.030 N/A N/A
all pistons come with rings, pin and retainers

Rings for above ø 3.375” pistons

GLM Ring No. Size OEM Ring No. GLM Ring No. Size OEM Ring No.
14275 Iron ø 3.375 39-813011A12 14270 Chrome ø 3.375 39-18487A12
14285 Iron ø 3.375 +.015 N/A 14280 Chrome ø 3.375 +.020 39-815267A4
14295 Iron ø 3.375 +.030 N/A 14290 Chrome ø 3.375 +.030 N/A
all rings come 2 to a set.

144
