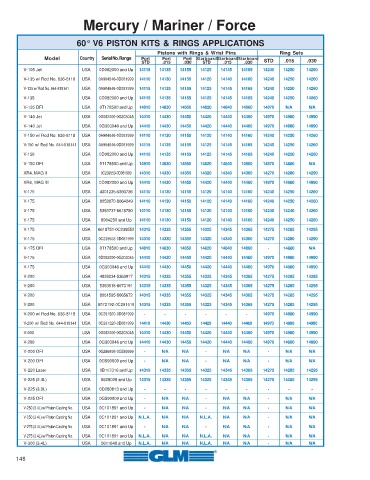

Mercury / Mariner / Force
60° V6 PISTON KITS & RINGS APPLICATIONS
Pistons with Rings & Wrist Pins Ring Sets
Model Country Serial No. Range Port Port Port StarboardStarboardStarboard
STD .015 .030 STD .015 .030 STD .015 .030
V-105 Jet USA 0D082000 and Up 14115 14135 14155 14125 14145 14165 14240 14250 14260
V-135 w/ Rod No. 636-8118 USA 0A904646-0D081999 14110 14130 14150 14120 14140 14160 14240 14250 14260
V-135 w/ Rod No. 644-818141 USA 0A904646-0D081999 14115 14135 14155 14125 14145 14165 14240 14250 14260
V-135 USA 0D082000 and Up 14115 14135 14155 14125 14145 14165 14240 14250 14260
V-135 DFI USA 0T178500 and Up 14810 14830 14850 14820 14840 14860 14870 N/A N/A
V-140 Jet USA 0D082000-0G303045 14410 14430 14450 14420 14440 14460 14970 14980 14990
V-140 Jet USA 0G303046 and Up 14410 14430 14450 14420 14440 14460 14970 14980 14990
V-150 w/ Rod No. 636-8118 USA 0A904646-0D081999 14110 14130 14150 14120 14140 14160 14240 14250 14260
V-150 w/ Rod No. 644-818141 USA 0A904646-0D081999 14115 14135 14155 14125 14145 14165 14240 14250 14260
V-150 USA 0D082000 and Up 14115 14135 14155 14125 14145 14165 14240 14250 14260
V-150 DFI USA 0T178500 and Up 14810 14830 14850 14820 14840 14860 14870 14880 N/A
XR4, MAG II USA 0C239553-0D081999 14310 14330 14350 14320 14340 14360 14270 14280 14290
XR6, MAG III USA 0D082000 and Up 14410 14430 14450 14420 14440 14460 14970 14980 14990
V-175 USA 4301235-5393736 14110 14130 14150 14120 14140 14160 14240 14250 14260
V-175 USA 8058870-8064249 14110 14130 14150 14120 14140 14160 14240 14250 14260
V-175 USA 5393737-6618750 14110 14130 14150 14120 14140 14160 14240 14240 14260
V-175 USA 8064250 and Up 14110 14130 14150 14120 14140 14160 14240 14250 14260
V-175 USA 6618751-0C239552 14315 14335 14355 14325 14345 14365 14275 14285 14295
V-175 USA 0C239553-0D081999 14310 14330 14350 14320 14340 14360 14270 14280 14290
V-175 DFI USA 0T178500 and Up 14810 14830 14850 14820 14840 14860 - 14880 N/A
V-175 USA 0D082000-0G303045 14410 14430 14450 14420 14440 14460 14970 14980 14990
V-175 USA 0G303046 and Up 14410 14430 14450 14420 14440 14460 14970 14980 14990
V-200 USA 4839034-5363917 14315 14335 14355 14325 14345 14365 14275 14285 14295
V-200 USA 5363918-6073191 14315 14335 14355 14325 14345 14365 14275 14285 14295
V-200 USA 8061595-8065672 14315 14335 14355 14325 14345 14365 14275 14285 14295
V-200 USA 6072192-0C291519 14315 14335 14355 14325 14345 14365 14275 14285 14295
V-200 w/ Rod No. 636-8118 USA 0C291520-0D081999 - - - - - - 14970 14980 14990
V-200 w/ Rod No. 644-818141 USA 0C291520-0D081999 14410 14430 14450 14420 14440 14460 14970 14980 14990
V-200 USA 0D082000-0G303045 14410 14430 14450 14420 14440 14460 14970 14980 14990
V-200 USA 0G303046 and Up 14410 14430 14450 14420 14440 14460 14970 14980 14990
V-200 DFI USA 0G386496-0G589999 - N/A N/A - N/A N/A - N/A N/A
V-200 DFI USA 0G590000 and Up - N/A N/A - N/A N/A - N/A N/A
V-220 Laser USA 0B117316 and Up 14315 14335 14355 14325 14345 14365 14275 14285 14295
V-225 (2.4L) USA 5628028 and Up 14315 14335 14355 14325 14345 14365 14275 14285 14295
V-225 (3.0L) USA 0D280813 and Up - - - - - - - - -
V-225 DFI USA 0G590000 and Up - N/A N/A - N/A N/A - N/A N/A
V-250 (3.4L) w/ Piston Casting No. USA 0C101891 and Up - N/A N/A - N/A N/A - N/A N/A
V-250 (3.4L) w/ Piston Casting No. USA 0C101891 and Up N.L.A. N/A N/A N.L.A. N/A N/A - N/A N/A
V-275 (3.4L) w/ Piston Casting No. USA 0C101891 and Up - N/A N/A - N/A N/A - N/A N/A
V-275 (3.4L) w/ Piston Casting No. USA 0C101891 and Up N.L.A. N/A N/A N.L.A. N/A N/A - N/A N/A
V-300 (3.4L) USA 5611648 and Up N.L.A. N/A N/A N.L.A. N/A N/A - N/A N/A
