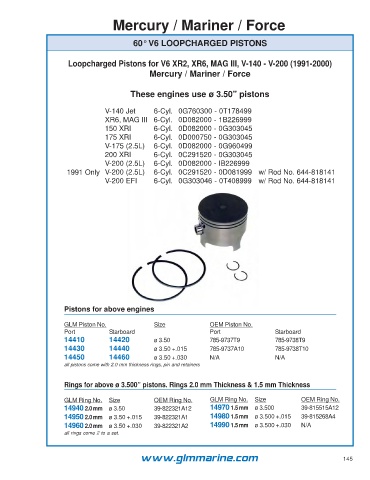

P. 145
Mercury / Mariner / Force
60° V6 LOOPCHARGED PISTONS
Loopcharged Pistons for V6 XR2, XR6, MAG III, V-140 - V-200 (1991-2000)
Mercury / Mariner / Force
These engines use ø 3.50” pistons
V-140 Jet 6-Cyl. 0G760300 - 0T178499
XR6, MAG III 6-Cyl. 0D082000 - 1B226999
150 XRI 6-Cyl. 0D082000 - 0G303045
175 XRI 6-Cyl. 0D000750 - 0G303045
V-175 (2.5L) 6-Cyl. 0D082000 - 0G960499
200 XRI 6-Cyl. 0C291520 - 0G303045
V-200 (2.5L) 6-Cyl. 0D082000 - IB226999
1991 Only V-200 (2.5L) 6-Cyl. 0C291520 - 0D081999 w/ Rod No. 644-818141
V-200 EFI 6-Cyl. 0G303046 - 0T408999 w/ Rod No. 644-818141
Pistons for above engines
GLM Piston No. Size OEM Piston No.
Port Starboard Port Starboard
14410 14420 ø 3.50 785-9737T9 785-9738T9
14430 14440 ø 3.50 +.015 785-9737A10 785-9738T10
14450 14460 ø 3.50 +.030 N/A N/A
all pistons come with 2.0 mm thickness rings, pin and retainers
Rings for above ø 3.500” pistons. Rings 2.0 mm Thickness & 1.5 mm Thickness
GLM Ring No. Size OEM Ring No. GLM Ring No. Size OEM Ring No.
14940 2.0 mm ø 3.50 39-822321A12 14970 1.5 mm ø 3.500 39-815515A12
14950 2.0 mm ø 3.50 +.015 39-822321A1 14980 1.5 mm ø 3.500 +.015 39-815268A4
14960 2.0 mm ø 3.50 +.030 39-822321A2 14990 1.5 mm ø 3.500 +.030 N/A
all rings come 2 to a set.
