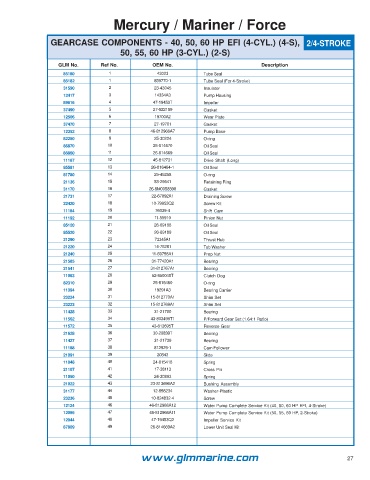

Mercury / Mariner / Force

GEARCASE COMPONENTS - 40, 50, 60 HP EFI (4-CYL.) (4-S), 2/4-STROKE
50, 55, 60 HP (3-CYL.) (2-S)

GLM No. Ref No. OEM No. Description
85180 1 43023 Tube Seal
85182 1 859770-1 Tube Seal (For 4-Stroke)
31590 2 23-43045 Insulator
12417 3 14334A3 Pump Housing
89616 4 47-19453T Impeller
37490 5 27-822189 Gasket
12506 6 19700A2 Wear Plate
37470 7 27-19701 Gasket
12352 8 46-812966A7 Pump Base
82250 9 25-30224 O-ring
86870 10 26-814670 Oil Seal
86860 11 26-814669 Oil Seal
11167 12 45-812731 Drive Shaft (Long)
85581 13 26-816464-1 Oil Seal
81780 14 25-45258 O-ring
21136 15 53-29641 Retaining Ring
31170 16 26-8M0058390 Gasket
21731 17 22-67892A1 Draining Screw
22420 18 10-79953Q2 Screw Kit
11184 19 76039-4 Shift Cam
11192 20 11-55910 Pinion Nut
85120 21 26-69188 Oil Seal
85520 22 26-69189 Oil Seal
21290 23 73345A1 Thrust Hub
21220 24 14-76281 Tab Washer
21240 25 11-69758A1 Prop Nut
21585 26 31-77420A1 Bearing
21541 27 31-812767A1 Bearing
11063 28 52-850048T Clutch Dog
82310 29 25-815460 O-ring
11394 30 19291A3 Bearing Carrier
23224 31 15-812770A1 Shim Set
23223 32 15-812769A1 Shim Set
11428 33 31-21700 Bearing
11562 34 43-803499T1 P/Forward Gear Set (1.64:1 Ratio)
11572 35 43-813695T Reverse Gear
21628 36 30-20839T Bearing
11427 37 31-21739 Bearing
11188 38 812929-1 Cam Follower
21091 39 20843 Slide
11048 40 24-815418 Spring
21107 41 17-38113 Cross Pin
11050 42 24-30893 Spring
21022 43 23-813696A2 Bushing Assembly
31177 44 12-858234 Washer-Plastic
23236 45 10-824832-4 Screw
12124 46 46-812966A12 Water Pump Complete Service Kit (40, 50, 60 HP EFI, 4-Stroke)
12095 47 46-812966A11 Water Pump Complete Service Kit (50, 55, 60 HP, 2-Stroke)
12044 48 47-19453Q2 Impeller Service Kit
87809 49 26-814669A2 Lower Unit Seal Kit

www.glmmarine.com 27
