Mercury / Mariner / Force

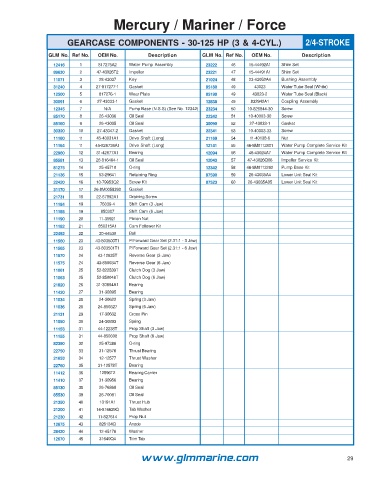

GEARCASE COMPONENTS - 30-125 HP (3 & 4-CYL.) 2/4-STROKE

GLM No. Ref No. OEM No. Description GLM No. Ref No. OEM No. Description
12416 1 817275A2 Water Pump Assembly 23222 46 15-44492A1 Shim Set
89630 2 47-43026T2 Impeller 23221 47 15-44491A1 Shim Set
11071 3 28-43037 Key 21024 48 23-43052A4 Bushing Assembly
31240 4 27-817277-1 Gasket 85180 49 43023 Water Tube Seal (White)
12500 5 817276-1 Wear Plate 85190 49 43023-2 Water Tube Seal (Black)
30091 6 27-43033-1 Gasket 12838 49 832942A1 Coupling Assembly
12345 7 N/A Pump Base (N.S.S) (See No. 12342) 23234 50 10-826844-30 Screw
85170 8 26-43036 Oil Seal 22342 51 10-40003-30 Screw
85160 9 26-43035 Oil Seal 30090 52 27-43033-1 Gasket
30320 10 27-43047-2 Gasket 22341 53 10-40003-33 Screw
11160 11 45-43031A1 Drive Shaft (Long) 21169 54 11-40138-6 Nut
11164 11 45-826736A1 Drive Shaft (Long) 12141 55 46-8M0113801 Water Pump Complete Service Kit
22960 12 31-42677A1 Bearing 12094 56 46-43024A7 Water Pump Complete Service Kit
85581 13 26-816464-1 Oil Seal 12043 57 47-43026Q06 Impeller Service Kit
81275 14 25-45710 O-ring 12342 58 46-8M0113262 Pump Base Kit
21136 15 53-29641 Retaining Ring 87590 59 26-43035A4 Lower Unit Seal Kit
22420 16 10-79953Q2 Screw Kit 87523 60 26-43035A05 Lower Unit Seal Kit
31170 17 26-8M0058390 Gasket
21731 18 22-67892A1 Draining Screw
11184 19 76039-4 Shift Cam (3 Jaw)
11185 19 850307 Shift Cam (6 Jaw)
11190 20 11-35921 Pinion Nut
11182 21 850315A1 Cam Follower Kit
22492 22 30-44530 Ball
11560 23 43-803500T1 P/Forward Gear Set (2.31:1 - 3 Jaw)
11565 23 43-803501T1 P/Forward Gear Set (2.31:1 - 6 Jaw)
11570 24 43-12635T Reverse Gear (3 Jaw)
11575 24 43-850034T Reverse Gear (6 Jaw)
11061 25 52-822539T Clutch Dog (3 Jaw)
11063 25 52-850048T Clutch Dog (6 Jaw)
21820 26 31-30894A1 Bearing
11420 27 31-30895 Bearing
11034 28 24-30622 Spring (3 Jaw)
11036 28 24-850327 Spring (6 Jaw)
21131 29 17-30632 Cross Pin
11050 30 24-30893 Spring
11153 31 44-12238T Prop Shaft (3 Jaw)
11155 31 44-850308 Prop Shaft (6 Jaw)
82390 32 25-97386 O-ring
22750 33 31-12576 Thrust Bearing
21653 34 12-12577 Thrust Washer
22760 35 31-12578T Bearing
11412 36 12596T2 Bearing Carrier
11410 37 31-30956 Bearing
85130 38 26-76868 Oil Seal
85530 39 26-70081 Oil Seal
21350 40 13191A1 Thrust Hub
21200 41 14-816629Q Tab Washer
21230 42 11-827614 Prop Nut
12675 43 826134Q Anode
28420 44 12-45176 Washer
12670 45 31640Q4 Trim Tab

www.glmmarine.com 29
