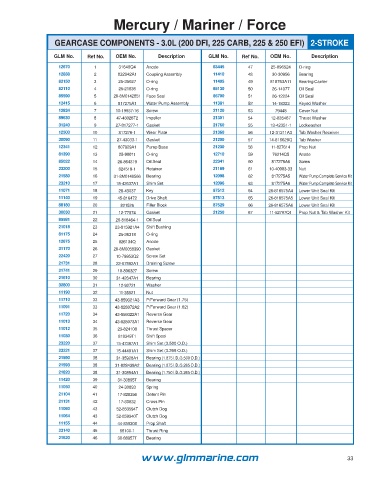

Mercury / Mariner / Force
GEARCASE COMPONENTS - 3.0L (200 DFI, 225 CARB, 225 & 250 EFI) 2-STROKE
GLM No. Ref No. OEM No. Description GLM No. Ref No. OEM No. Description
12670 1 31640Q4 Anode 83445 47 25-896524 O-ring
12838 2 832942A1 Coupling Assembly 11410 48 30-30956 Bearing
82150 3 25-35027 O-ring 11405 49 818763A11 Bearing Carrier
82110 4 25-21836 O-ring 85130 50 26-14077 Oil Seal
85590 5 26-8M0142851 Face Seal 85700 51 26-12224 Oil Seal
12415 6 817275A1 Water Pump Assembly 11381 52 14-18323 Keyed Washer
12834 7 10-19937-16 Screw 21120 53 79448 Cover Nut
89630 8 47-43026T2 Impeller 21301 54 12-835467 Thrust Washer
31240 9 27-817277-1 Gasket 21760 55 13-42351-1 Lockwasher
12500 10 817276-1 Wear Plate 21360 56 12-31211A3 Tab Washer Receiver
30090 11 27-43033-1 Gasket 21200 57 14-816629Q Tab Washer
12341 12 807929A1 Pump Base 21230 58 11-827614 Prop Nut
81390 13 25-90011 O-ring 12710 59 76214Q5 Anode
85022 14 26-864319 Oil Seal 22341 60 817275A6 Screw
23200 15 824519-1 Retainer 21169 61 10-40003-33 Nut
21580 16 31-8M0146566 Bearing 12098 62 817275A5 Water Pump Complete Service Kit
23210 17 15-42637A1 Shim Set 12096 63 817275A6 Water Pump Complete Service Kit
11071 18 28-43037 Key 87512 64 26-816575A4 Lower Unit Seal Kit
11140 19 45-816472 Drive Shaft 87513 65 26-816575A5 Lower Unit Seal Kit
88180 20 821526 Filler Block 87529 66 26-816575A6 Lower Unit Seal Kit
30030 21 12-77674 Gasket 21250 67 11-52707Q1 Prop Nut & Tab Washer Kit
85581 22 26-816464-1 Oil Seal
21018 23 23-815921A4 Shift Bushing
81175 24 25-36318 O-ring
12675 25 826134Q Anode
31170 26 26-8M0058390 Gasket
22420 27 10-79953Q2 Screw Set
21731 28 22-67892A1 Draining Screw
21741 29 10-806327 Screw
21610 30 31-42647A1 Bearing
32800 31 12-92721 Washer
11190 32 11-35921 Nut
11710 33 43-859321A3 P/Forward Gear (1.75)
11091 33 43-828072A2 P/Forward Gear (1.62)
11720 34 43-859322A1 Reverse Gear
11013 34 43-828073A1 Reverse Gear
11012 35 23-824108 Thrust Spacer
11030 36 818349T1 Shift Spool
23220 37 15-47397A1 Shim Set (3.500 O.D.)
23221 37 15-44491A1 Shim Set (3.265 O.D.)
21590 38 31-35928A1 Bearing (1.875 I.D./3.500 O.D.)
21593 38 31-828439A2 Bearing (1.875 I.D./3.265 O.D.)
21820 38 31-30894A1 Bearing (1.750 I.D./3.265 O.D.)
11420 39 31-30895T Bearing
11050 40 24-30893 Spring
21104 41 17-828356 Detent Pin
21131 42 17-30632 Cross Pin
11060 43 52-853594T Clutch Dog
11064 43 52-859340T Clutch Dog
11155 44 44-850308 Prop Shaft
23140 45 68100-1 Thrust Ring
21620 46 30-88957T Bearing
