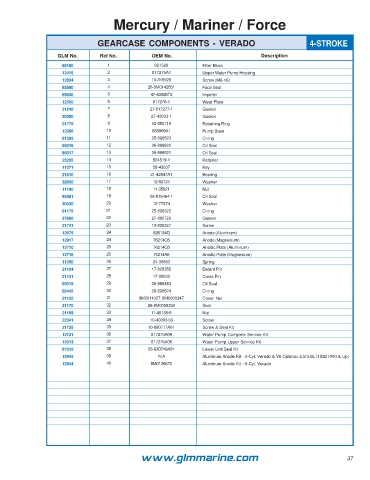

Page 37 - MercMarForc_Catalog_Flipbook

Mercury / Mariner / Force

GEARCASE COMPONENTS - VERADO 4-STROKE

GLM No. Ref No. OEM No. Description
88180 1 821526 Filler Block
12415 2 817275A1 Upper Water Pump Housing
12834 3 10-816928 Screw (M6-16)
85590 4 26-8M0142851 Face Seal
89630 5 47-43026T2 Impeller
12500 6 817276-1 Wear Plate
31240 7 27-817277-1 Gasket
30090 8 27-43033-1 Gasket
21775 9 53-880719 Retaining Ring
12366 10 888909A1 Pump Base
81395 11 25-896523 O-ring
85016 12 26-888920 Oil Seal
85017 13 26-888921 Oil Seal
23200 14 824519-1 Retainer
11071 15 28-43037 Key
21610 16 31-42647A1 Bearing
32800 17 12-92721 Washer
11190 18 11-35921 Nut
85581 19 26-816464-1 Oil Seal
30030 20 12-77674 Washer
81175 21 25-896322 O-ring
37860 22 27-880729 Gasket
21741 23 10-806327 Screw
12675 24 826134Q Anode (Aluminum)
12917 24 76214Q5 Anode (Magnesium)
12710 25 76214Q5 Anodic Plate (Aluminum)
12716 25 76214A6 Anodic Plate (Magnesium)
11050 26 24-30893 Spring
21104 27 17-828356 Detent Pin
21131 28 17-30632 Cross Pin
85019 29 26-888483 Oil Seal
83445 30 26-896524 O-ring
21120 31 8M2011027, 8M2000347 Cover Nut
31170 32 26-8M0058390 Seal
21169 33 11-40138-6 Nut
22341 34 10-40003 33 Screw
21735 35 10-880717A01 Screw & Seal Kit
12121 36 817275A09 Water Pump Complete Service Kit
12013 37 817275A08 Water Pump Upper Service Kit
87515 38 26-830749A01 Lower Unit Seal Kit
12945 39 N/A Aluminum Anode Kit - 4-Cyl. Verado & V6 Optimax 2.5/3.0L (1B227000 & Up)
12944 40 8M0126670 Aluminum Anode Kit - 6-Cyl. Verado

www.glmmarine.com 37
