P. 36

Mercury / Mariner / Force

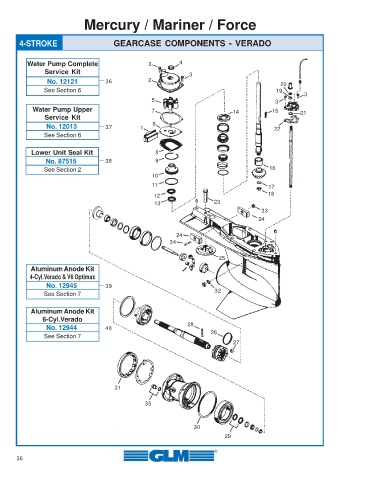

       4-STROKE                        GEARCASE COMPONENTS - VERADO


          Water Pump Complete                     3         4
                Service Kit                                     3
                 No. 12121          36            2                                           20
                See Section 6                                                               19
                                                                                                      3
                                                   5                                        3
            Water Pump Upper                       7                          14           15       21
                Service Kit
                No. 12013           37         1    6                                       22
                See Section 6


           Lower Unit Seal Kit                      8
                No. 87515           38              9
                See Section 2                                                             16
                                                   10
                                                   11                                     17
                                                    12                                    18
                                                    13                  23
                                                                                        33
                                                                                       24


                                                           24
                                                         34


                                                                         25
           Aluminum Anode Kit
           4-Cyl.Verado & V6 Optimax
                No. 12945           39
                See Section 7                                           32

           Aluminum Anode Kit
               6-Cyl.Verado
                No. 12944           40                         28
                See Section 7                                          26
                                                                              27







                                       31


                                                 35



                                                                 30
                                                                           29



       36
