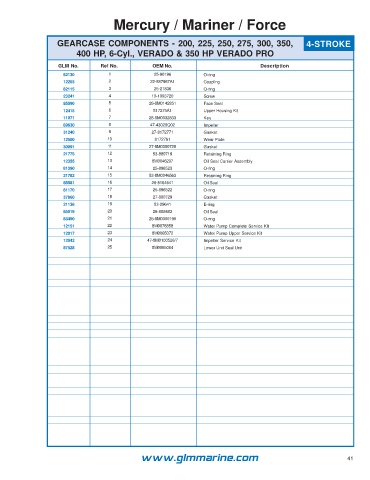

Page 41 - MercMarForc_Catalog_Flipbook
P. 41
Mercury / Mariner / Force
GEARCASE COMPONENTS - 200, 225, 250, 275, 300, 350, 4-STROKE
400 HP, 6-Cyl., VERADO & 350 HP VERADO PRO
GLM No. Ref No. OEM No. Description
82130 1 25-90196 O-ring
12203 2 22-887987A1 Coupling
82115 3 25-21836 O-ring
23241 4 10-1993720 Screw
85590 5 26-8M0142851 Face Seal
12415 6 817275A1 Upper Housing Kit
11071 7 28-8M0032833 Key
89630 8 47-43026Q02 Impeller
31240 9 27-8172771 Gasket
12500 10 8172761 Wear Plate
30091 11 27-8M0050720 Gasket
21775 12 53-880719 Retaining Ring
12355 13 8M0046297 Oil Seal Carrier Assembly
81390 14 25-896523 O-ring
21782 15 53-8M0046563 Retaining Ring
85581 16 26-8164641 Oil Seal
81170 17 25-896522 O-ring
37860 18 27-880729 Gasket
21136 19 53-29641 E-ring
85019 20 26-888483 Oil Seal
83490 21 25-8M0000190 O-ring
12151 22 8M0078858 Water Pump Complete Service Kit
12017 23 8M0065072 Water Pump Upper Service Kit
12043 24 47-8M0100526/7 Impeller Service Kit
87528 25 8M0065064 Lower Unit Seal Unit
www.glmmarine.com 41
