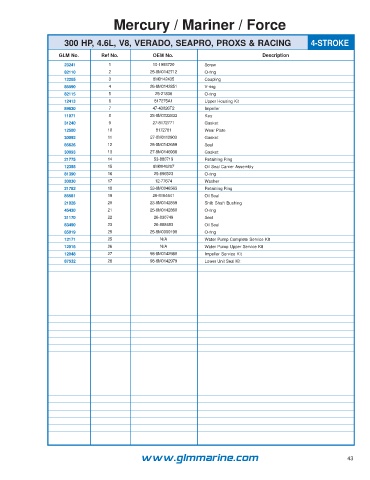

Mercury / Mariner / Force
300 HP, 4.6L, V8, VERADO, SEAPRO, PROXS & RACING 4-STROKE
GLM No. Ref No. OEM No. Description
23241 1 10-1993720 Screw
82110 2 25-8M0142712 O-ring
12205 3 8M0142435 Coupling
85590 4 26-8M0142851 V-ring
82115 5 25-21836 O-ring
12413 6 817275A1 Upper Housing Kit
89630 7 47-43026T2 Impeller
11071 8 28-8M0032833 Key
31240 9 27-8172771 Gasket
12500 10 8172761 Wear Plate
30092 11 27-8M0112903 Gasket
85626 12 25-8M0142659 Seal
30093 13 27-8M0146938 Gasket
21775 14 53-880719 Retaining Ring
12355 15 8M0046297 Oil Seal Carrier Assembly
81390 16 25-896523 O-ring
30030 17 12-77674 Washer
21782 18 53-8M0046563 Retaining Ring
85581 19 26-8164641 Oil Seal
21028 20 23-8M0142859 Shift Shaft Bushing
45430 21 25-8M0142860 O-ring
31170 22 26-830749 Seal
83490 23 26-888483 Oil Seal
85019 25 25-8M0000190 O-ring
12171 25 N/A Water Pump Complete Service Kit
12016 26 N/A Water Pump Upper Service Kit
12048 27 98-8M0142980 Impeller Service Kit
87532 28 98-8M0142979 Lower Unit Seal Kit
