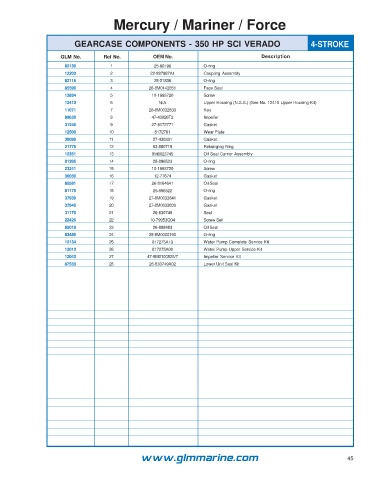

Mercury / Mariner / Force
GEARCASE COMPONENTS - 350 HP SCI VERADO 4-STROKE
GLM No. Ref No. OEM No. Description
82130 1 25-90196 O-ring
12203 2 22-887987A1 Coupling Assembly
82115 3 25-21836 O-ring
85590 4 26-8M0142851 Face Seal
12834 5 10-1993720 Screw
12413 6 N/A Upper Housing (N.S.S.) (See No. 12416 Upper Housing Kit)
11071 7 28-8M0032833 Key
89630 8 47-43026T2 Impeller
31240 9 27-8172771 Gasket
12500 10 8172761 Wear Plate
30090 11 27-430331 Gasket
21775 12 53-880719 Retainging Ring
12351 13 8M8023745 Oil Seal Carrier Assembly
81395 14 25-896523 O-ring
23241 15 10-1993720 Screw
30030 16 12-77674 Gasket
85581 17 26-8164641 Oil Seal
81175 18 25-896522 O-ring
37930 19 27-8M0033641 Gasket
37940 20 27-8M0033809 Gasket
31170 21 26-830749 Seal
22420 22 10-79953Q04 Screw Set
85019 23 26-888483 Oil Seal
83490 24 25-8M0000190 O-ring
12134 25 817275A13 Water Pump Complete Service Kit
12013 26 817275A08 Water Pump Upper Service Kit
12043 27 47-8M0100526/7 Impeller Service Kit
87533 28 26-830749A02 Lower Unit Seal Kit
www.glmmarine.com 45
