Mercury / Mariner / Force

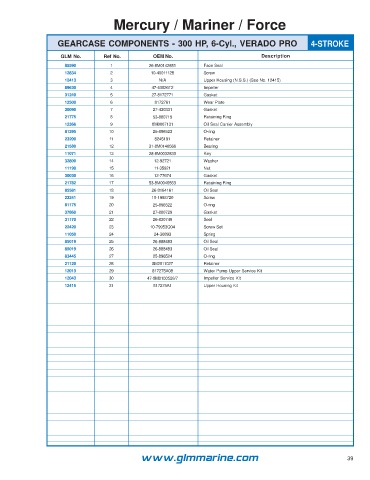

GEARCASE COMPONENTS - 300 HP, 6-Cyl., VERADO PRO 4-STROKE
GLM No. Ref No. OEM No. Description
85590 1 26-8M0142851 Face Seal
12834 2 10-40011128 Screw
12413 3 N/A Upper Housing (N.S.S.) (See No. 12415)
89630 4 47-43026T2 Impeller
31240 5 27-8172771 Gasket
12500 6 8172761 Wear Plate
30090 7 27-430331 Gasket
21775 8 53-880719 Retaining Ring
12366 9 8M0007131 Oil Seal Carrier Assembly
81395 10 25-896523 O-ring
23200 11 8245191 Retainer
21580 12 31-8M0146566 Bearing
11071 13 28-8M0032833 Key
32800 14 12-92721 Washer
11190 15 11-35921 Nut
30030 16 12-77674 Gasket
21782 17 53-8M0046563 Retaining Ring
85581 18 26-8164161 Oil Seal
23241 19 10-1993720 Screw
81175 20 25-896522 O-ring
37860 21 27-880729 Gasket
31170 22 26-830749 Seal
22420 23 10-79953Q04 Screw Set
11050 24 24-30893 Spring
85019 25 26-888483 Oil Seal
85019 26 26-888483 Oil Seal
83445 27 25-896524 O-ring
21120 28 8M2011027 Retainer
12013 29 817275A08 Water Pump Upper Service Kit
12043 30 47-8M0100526/7 Impeller Service Kit
12415 31 817275A1 Upper Housing Kit
