Mercury / Mariner / Force

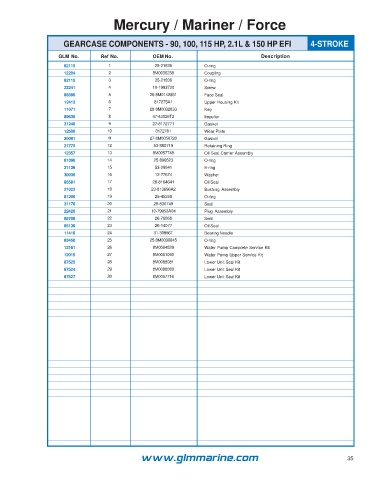

GEARCASE COMPONENTS - 90, 100, 115 HP, 2.1L & 150 HP EFI 4-STROKE
GLM No. Ref No. OEM No. Description
82115 1 25-21836 O-ring
12204 2 8M0036238 Coupling
82115 3 25-21836 O-ring
23241 4 10-1993720 Screw
85590 5 26-8M0142851 Face Seal
12413 6 817275A1 Upper Housing Kit
11071 7 28-8M0032833 Key
89630 8 47-43026T2 Impeller
31240 9 27-8172771 Gasket
12500 10 8172761 Wear Plate
30091 11 27-8M0050720 Gasket
21775 12 53-880719 Retaining Ring
12357 13 8M0057748 Oil Seal Carrier Assembly
81390 14 25-896523 O-ring
21136 15 53-29641 E-ring
30030 16 12-77674 Washer
85581 17 26-8164641 Oil Seal
21022 18 23-813696A2 Bushing Assembly
81200 19 25-45258 O-ring
31170 20 26-830749 Seal
22420 21 10-79953A04 Plug Assembly
85700 22 26-76868 Seal
85130 23 26-14077 Oil Seal
11410 24 31-30956T Bearing Needle
83450 25 25-8M0030845 O-ring
12161 26 8M0094529 Water Pump Complete Service Kit
12015 27 8M0061040 Water Pump Upper Service Kit
87525 28 8M0088081 Lower Unit Seal Kit
87524 29 8M0088080 Lower Unit Seal Kit
87527 30 8M0057716 Lower Unit Seal Kit
