Mercury / Mariner / Force

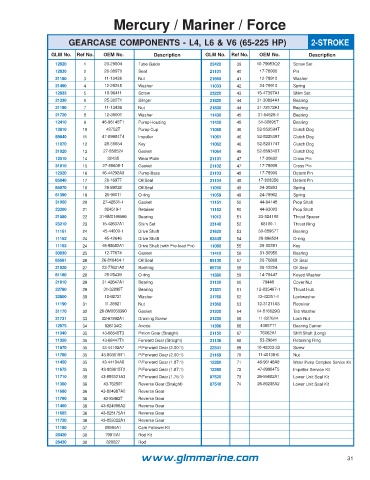

GEARCASE COMPONENTS - L4, L6 & V6 (65-225 HP) 2-STROKE

GLM No. Ref No. OEM No. Description GLM No. Ref No. OEM No. Description
12820 1 23-29804 Tube Guide 22420 39 10-79953Q2 Screw Set
12830 2 26-38970 Seal 21101 40 17-78906 Pin
21180 3 11-13438 Nut 21665 41 12-78910 Washer
21490 4 12-29245 Washer 11033 42 24-79910 Spring
12833 5 10-96411 Screw 23220 43 15-47397A1 Shim Set
21330 6 25-30271 Slinger 21820 44 31-30894A1 Bearing
21190 7 11-13436 Nut 21830 44 31-78172A1 Bearing
21720 8 12-36001 Washer 11430 45 31-54928-1 Bearing
12410 9 46-96148T1 Pump Housing 11420 45 31-30895T Bearing
12810 10 48752T Pump Cup 11060 46 52-853594T Clutch Dog
89840 11 47-89984T4 Impeller 11061 46 52-822539T Clutch Dog
11070 12 28-56654 Key 11062 46 52-823174T Clutch Dog
31020 13 27-858524 Gasket 11064 46 52-859340T Clutch Dog
12510 14 32435 Wear Plate 21131 47 17-30632 Cross Pin
31010 15 27-85608-1 Gasket 21102 47 17-78905 Cross Pin
12320 16 46-44292A3 Pump Base 21103 48 17-78909 Detent Pin
85040 17 26-16977 Oil Seal 21104 48 17-828356 Detent Pin
85070 18 26-89238 Oil Seal 11050 49 24-30893 Spring
81390 19 25-90011 O-ring 11059 49 24-78962 Spring
31050 20 27-42631-1 Gasket 11151 50 44-94148 Prop Shaft
23200 21 824519-1 Retainer 11152 50 44-93003 Prop Shaft
21580 22 31-8M0146566 Bearing 11012 51 23-824108 Thrust Spacer
23210 23 15-42637A1 Shim Set 23140 52 68100-1 Thrust Ring
11161 24 45-44000-1 Drive Shaft 21620 53 30-88957T Bearing
11162 24 45-42646 Drive Shaft 83445 54 25-896524 O-ring
11163 24 45-98682A1 Drive Shaft (with Pre-load Pin) 11080 55 28-30281 Key
30030 25 12-77674 Gasket 11410 56 31-30956 Bearing
85581 26 26-816464-1 Oil Seal 85130 57 26-76868 Oil Seal
21020 27 23-77631A2 Bushing 85700 58 26-12224 Oil Seal
81180 28 25-25439 O-ring 11380 59 14-79447 Keyed Washer
21610 29 31-42647A1 Bearing 21120 60 79448 Cover Nut
22780 29 31-32898T Bearing 21301 61 12-835467-1 Thrust Hub
32800 30 12-92721 Washer 21760 62 13-42351-1 Lockwasher
11190 31 11-35921 Nut 21360 63 12-31211A3 Receiver
31170 32 26-8M0058390 Gasket 21200 64 14-816629Q Tab Washer
21731 33 22-67892A1 Draining Screw 21230 65 11-827614 Lock Nut
12675 34 826134Q Anode 11396 66 43567T1 Bearing Carrier
11340 35 43-68548T3 Pinion Gear (Straight) 21150 67 76062A1 Shift Shaft (Long)
11350 35 43-68447T1 Forward Gear (Straight) 21136 68 53-29641 Retaining Ring
11670 35 43-44102A7 P/Forward Gear (2.00:1) 22341 69 10-40003-33 Screw
11780 35 43-803619T1 P/Forward Gear (2.00:1) 21169 70 11-40138-6 Nut
11450 35 43-44104A8 P/Forward Gear (1.87:1) 12280 71 46-96148A8 Water Pump Complete Service Kit
11675 35 43-803615T2 P/Forward Gear (1.87:1) 12290 72 47-89984T5 Impeller Service Kit
11710 35 43-859321A3 P/Forward Gear (1.75:1) 87520 73 26-55682A1 Lower Unit Seal Kit
11360 36 43-76250T Reverse Gear (Straight) 87540 74 26-89238A2 Lower Unit Seal Kit
11680 36 43-824987A2 Reverse Gear
11790 36 43-85462T Reverse Gear
11460 36 43-824986A2 Reverse Gear
11685 36 43-828175A1 Reverse Gear
11720 36 43-859322A1 Reverse Gear
11180 37 89594A1 Cam Follower Kit
26420 38 79911A1 Rod Kit
26430 38 828827 Rod
www.glmmarine.com 31
