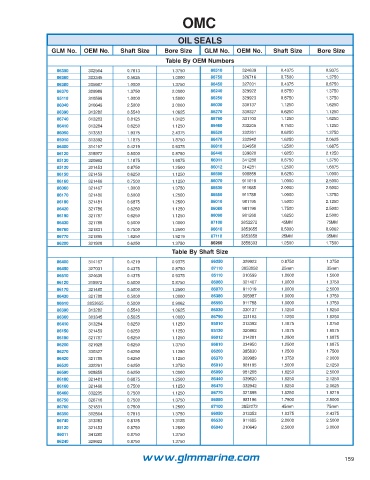

Page 159 - OMC_Catalog_Flipbook

OMC

OIL SEALS

GLM No. OEM No. Shaft Size Bore Size GLM No. OEM No. Shaft Size Bore Size
Table By OEM Numbers
86350 302564 0.7813 1.3750 86510 324639 0.4375 0.9375
86360 303345 0.5625 1.0000 86750 326716 0.7500 1.3750
86380 305987 1.0000 1.3750 86450 327031 0.4375 0.8750
86370 309989 1.3750 2.0000 86240 329922 0.8750 1.3750
85110 310599 1.0000 1.5000 86250 329923 0.8750 1.3750
86040 310649 2.5000 3.0000 86030 330137 1.1250 1.6250
86390 313282 0.5540 1.0625 86270 330327 0.6250 1.1250
86740 313283 0.8125 1.3125 86790 331103 1.1250 1.6250
86410 313284 0.6250 1.1250 86460 332205 0.7500 1.1250
86050 313353 1.9375 2.4375 86520 332261 0.6250 1.3750
85010 313392 1.1875 1.8750 86470 332942 1.6250 2.0625
86400 314167 0.4219 0.9375 86810 334950 1.2500 1.6875
86120 318972 0.5000 0.8750 86440 339620 1.6250 2.1250
85130 320862 1.1875 1.6875 86011 341280 0.8750 1.3750
85120 321453 0.8750 1.2500 86012 314281 1.2500 1.6875
86150 321459 0.6250 1.1250 86590 908855 0.6250 1.0000
86160 321466 0.7500 1.1250 86070 911019 1.0000 2.5000
86060 321467 1.0000 1.3750 86530 911685 2.0000 2.5000
86170 321480 0.5000 1.2500 86550 911788 1.0000 1.3750
86180 321481 0.6875 1.2500 86010 981195 1.5000 2.1250
86420 321786 0.6250 1.1250 86080 981196 1.7500 2.5000
86190 321787 0.6250 1.1250 86090 981268 1.6250 2.5000
86430 321788 0.5000 1.0000 87100 3852272 45MM 75MM
86760 321831 0.7500 1.2500 86610 3853655 0.5000 0.9062
86770 321895 1.6250 1.9219 87110 3853858 25MM 35MM
86200 321928 0.6250 1.3750 86260 3858303 1.2500 1.7500
Table By Shaft Size

86400 314167 0.4219 0.9375 86250 329923 0.8750 1.3750
86450 327031 0.4375 0.8750 87110 3853858 25mm 35mm
86510 324639 0.4375 0.9375 85110 310599 1.0000 1.5000
86120 318972 0.5000 0.8750 86060 321467 1.0000 1.3750
86170 321480 0.5000 1.2500 86070 911019 1.0000 2.5000
86430 321788 0.5000 1.0000 86380 305987 1.0000 1.3750
86610 3853655 0.5000 0.9062 86550 911788 1.0000 1.3750
86390 313282 0.5540 1.0625 86030 330137 1.1250 1.6250
86360 303345 0.5625 1.0000 86790 331103 1.1250 1.6250
86410 313284 0.6250 1.1250 85010 313392 1.1875 1.8750
86150 321459 0.6250 1.1250 85130 320862 1.1875 1.6875
86190 321787 0.6250 1.1250 86012 314281 1.2500 1.6875
86200 321928 0.6250 1.3750 86810 334950 1.2500 1.6875
86270 330327 0.6250 1.1250 86260 385830 1.2500 1.7500
86420 321786 0.6250 1.1250 86370 309989 1.3750 2.0000
86520 332261 0.6250 1.3750 86010 981195 1.5000 2.1250
86590 908855 0.6250 1.0000 86090 981268 1.6250 2.5000
86180 321481 0.6875 1.2500 86440 339620 1.6250 2.1250
86160 321466 0.7500 1.1250 86470 332942 1.6250 2.0625
86460 332205 0.7500 1.1250 86770 321895 1.6250 1.9219
86750 326716 0.7500 1.3750 86080 981196 1.7500 2.5000
86760 321831 0.7500 1.2500 87100 3852272 45mm 75mm
86350 302564 0.7813 1.3750 86050 313353 1.9375 2.4375
86740 313283 0.8125 1.3125 86530 911685 2.0000 2.5000
85120 321453 0.8750 1.2500 86040 310649 2.5000 3.0000
86011 341280 0.8750 1.3750
86240 329922 0.8750 1.3750

www.glmmarine.com 159
