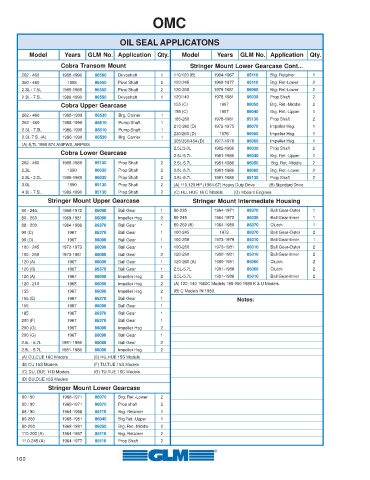

OMC

OIL SEAL APPLICATONS

Model Years GLM No. Application Qty. Model Years GLM No. Application Qty.
Cobra Transom Mount Stringer Mount Lower Gearcase Cont...
262 - 460 1988-1990 86560 Driveshaft 1 110/120 (B) 1964-1967 85110 Brg. Retainer 1
350 - 460 1988 86550 Pivot Shaft 2 120-245 1968-1977 85110 Brg. Ret-Lower 2
2.3L - 7.5L 1986-1988 86550 Pivot Shaft 2 120-260 1978-1981 86060 Brg. Ret-Lower 2
2.3L - 7.5L 1986-1990 86550 Driveshaft 1 120/140 1978-1981 86030 Prop Shaft 2
Cobra Upper Gearcase 155 (C) 1967 86050 Brg. Ret.-Middle 2
155 (C) 1967 86040 Brg. Ret.-Upper 1
262 - 460 1988-1989 86530 Brg. Carrier 1
185-260 1978-1981 85130 Prop Shaft 2
262 - 460 1988-1990 86610 Pump Shaft 1
210-260 (D) 1972-1975 86070 Impeller Hsg. 1
2.3L - 7.5L 1986-1990 86610 Pump Shaft 1
230/260 (D) 1976 86060 Impeller Hsg. 1
2.3L-7.5L (A) 1986-1990 86530 Brg. Carrier 1
305/350/454 (D) 1977-1978 86060 Impeller Hsg. 1
(A) 5,7L 1990 574 AMPWS, ARPWS
2.5L/3.0L 1982-1986 86030 Prop Shaft 2
Cobra Lower Gearcase 2.5L-5.7L 1981-1986 86040 Brg. Ret.-Upper 1
262 - 460 1988-1989 85130 Prop Shaft 2 2.5L-5.7L 1981-1986 86050 Brg. Ret.-Middle 2
2.3L 1990 86030 Prop Shaft 2 2.5L-5.7L 1981-1986 86060 Brg. Ret.-Lower 2
2.3L - 3.0L 1986-1989 86030 Prop Shaft 2 3.8L-5.7L 1981-1986 85130 Prop Shaft 2
3.0L 1990 85130 Prop Shaft 2 (A) 110,120 HP (1964-67) Heavy Duty Drive (B) Standard Drive
4.3L - 7.5L 1986-1990 85130 Prop Shaft 2 (C) HU, HUE 16 C Models (D) Inboard Engines
Stringer Mount Upper Gearcase Stringer Mount Intermediate Housing
80 - 245 1968-1972 86090 Ball Gear 1 80-235 1964-1971 86370 Ball Gear-Outer 1
80 - 260 1969-1981 86090 Impeller Hsg 2 80-245 1964-1972 86030 Ball Gear-Inner 1
88 - 200 1964-1966 86370 Ball Gear 1 80-260 (B) 1964-1980 86070 Clutch 1
90 (C) 1967 86370 Ball Gear 1 100-245 1972 86370 Ball Gear-Outer 2
90 (D) 1967 86090 Ball Gear 1 100-260 1973-1979 85010 Ball Gear-Inner 1
100 - 245 1972-1973 86090 Ball Gear 1 100-260 1973-1981 86010 Ball Gear-Outer 2
100 - 260 1973-1981 86080 Ball Gear 2 120-260 1980-1981 85010 Ball Gear-Inner 2
120 (A) 1967 86090 Ball Gear 1 120-260 (A) 1980-1981 86060 Clutch 2
120 (B) 1967 86370 Ball Gear 1 2.5L-5.7L 1981-1986 86060 Clutch 2
120 (A) 1967 86090 Impeller Hsg 2 2.5L-5.7L 1981-1986 85010 Ball Gear-Inner 2
120 - 210 1968 86090 Impeller Hsg 2 (A) 120, 140 1980C Models 185-260 1980 K & U Models.
155 1967 86090 Impeller Hsg 2 (B) C Models IN 1980.
155 (E) 1967 86370 Ball Gear 1 Notes:
155 1967 86090 Ball Gear 1
185 1967 86370 Ball Gear 1
200 (F) 1967 86370 Ball Gear 1
200 (G) 1967 86090 Impeller Hsg 2
200 (G) 1967 86090 Ball Gear 1
2.5L - 5.7L 1981-1986 86080 Ball Gear 2
2.5L - 5.7L 1981-1986 86090 Impeller Hsg 2
(A) CU,CUE 16C Models (E) HU,HUE 15S Models
(B) CU 15S Models (F) TU,TUE 15S Models
(C) DU, DUE 14D Models (G) TU,TUE 16C Models
(D) DU,DUE 15S Models
Stringer Mount Lower Gearcase
80 / 90 1968-1971 86070 Brg. Ret.-Lower 2
80 / 90 1968-1971 86070 Prop shaft 2
88 / 90 1964-1968 85110 Brg. Retainer 1
80-260 1968-1981 86040 Brg Ret.-Upper 1
80-260 1968-1981 86050 Brg. Ret.-Middle 2
110-200 (A) 1964-1967 85110 Brg. Retainer 2
11 0-245 (A) 1964-1977 85110 Prop Shaft 2

160
