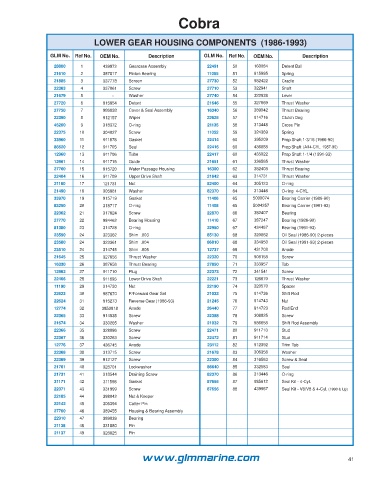

Cobra



                                LOWER GEAR HOUSING COMPONENTS  (1986-1993)

                  GLM No.  Ref No.  OEM No.       Description       GLM No.  Ref No.  OEM No.        Description
                   28800    1      439972   Gearcase Assembly         22491   50     160084   Detent Ball
                   21610    2      387817   Pinion Bearing            11055   51     915995   Spring
                   21885    3      337778   Screen                    27730   52     982422   Cradle
                   22363    4      337061   Screw                     27710   53     322941   Shaft
                   21679    5            -  Washer                    27740   54     322938   Lever
                   27720    6      915954   Detent                    21646   55     327669   Thrust Washer
                   27750    7      986838   Cover & Seal Assembly     16340   56     389042   Thrust Bearing
                   22390    8      912157   Wiper                     22625   57     914716   Clutch Dog
                   45200    9      318372   O-ring                    21135   58     313448   Cross Pin
                   22375   10      304027   Screw                     11052   59     324369   Spring
                   33960   11      911878   Gasket                    22414   60     395209   Prop Shaft 1-3/16 (1986-90)
                   86620   12      911705   Seal                      22416   60     436888   Prop Shaft  (All 4-CYL. 1987-90)
                   12960   13      911706   Tube                      22417   60     435022   Prop Shaft 1-1/4 (1991-93)
                   12961   14      911715   Guide                     21651   61     336565   Thrust Washer
                   27760   15      915720   Water Passage Housing     16300   62     382408   Thrust Bearing
                   22404   16      911709   Upper Drive Shaft         21642   63     314731   Thrust Washer
                   21180   17      121731   Nut                       82400   64     305123   O-ring
                   21490   18      305981   Washer                    82370   64     313446   O-ring  4-CYL.
                   33970   19      915719   Gasket                    11406   65     5000074  Bearing Carrier (1986-90)
                   83250   20      318717   O-ring                    11408   65     5004257  Bearing Carrier (1991-93)
                   22362   21      317624   Screw                     22870   66     382407   Bearing
                   27770   22      984462   Bearing Housing           11410   67     387247   Bearing (1986-90)
                   81380   23      314728   O-ring                    22950   67     434467   Bearing (1991-93)
                   23590   24      323362   Shim  .003                85130   68     320862   Oil Seal (1986-90) 2-pieces
                   23580   24      323361   Shim  .004                86810   68     334950   Oil Seal (1991-93) 2-pieces
                   23510   24      314745   Shim  .005                12737   69     431708   Anode
                   21645   25      327656   Thrust Washer             22320   70     908158   Screw
                   16330   26      387656   Thrust Bearing            27850   71     333957   Tab
                   12962   27      911710   Plug                      22373   72     341541   Screw
                   22406   28      911693   Lower Drive Shaft         22221   73     126870   Thrust Washer
                   11190   29      314730   Nut                       22190   74     320570   Spacer
                   22623   30      987670   P/Forward Gear Set        21033   75     914736   Shift Rod
                   22624   31      915273   Reverse Gear (1986-93)    21245   76     914743   Nut
                   12774   32      3853818  Anode                     26440   77     914723   Rod End
                   22365   33      914535   Screw                     22388   78     308825   Screw
                   21674   34      330265   Washer                    21032   79     986658   Shift Rod Assembly
                   22366   35      328096   Screw                     22471   80     911713   Stud
                   22367   36      330263   Screw                     22472   81     911714   Stud
                   12776   37      436745   Anode                     23112   82     912392   Trim Tab
                   22368   38      313715   Screw                     21678   83     306358   Washer
                   22369   39      912127   Screw                     22300   84     316563   Screw & Seal
                   21761   40      328701   Lockwasher                86640   85     332583   Seal
                   21731   41      318544   Draining Screw            82370   86     313446   O-ring
                   31171   42      311598   Gasket                    87655   87     985612   Seal Kit - 4-Cyl.
                   22371   43      331999   Screw                     87656   88     439967   Seal Kit - V6/V8 & 4-Cyl. (1990 & Up)
                   22185   44      398042   Nut & Keeper
                   22142   45      306394   Cotter Pin
                   27700   46      389455   Housing & Bearing Assembly
                   22910   47      389039   Bearing
                   21138   48      331880   Pin
                   21137   49      328825   Pin
