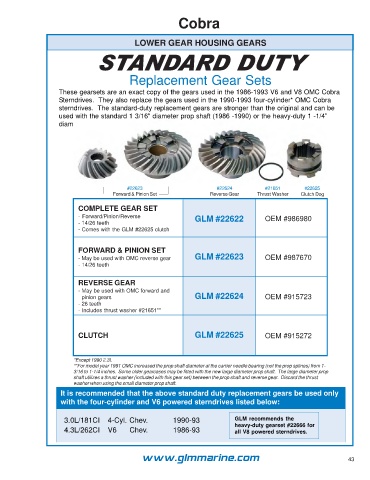

Cobra



                                              LOWER GEAR HOUSING GEARS
                                 STANDARD DUTY



                                            Replacement Gear Sets

                     These gearsets are an exact copy of the gears used in the 1986-1993 V6 and V8 OMC Cobra
                     Sterndrives.  They also replace the gears used in the 1990-1993 four-cylinder* OMC Cobra
                     sterndrives.  The standard-duty replacement gears are stronger than the original and can be
                     used with the standard 1 3/16" diameter prop shaft (1986 -1990) or the heavy-duty 1 -1/4”
                     diameter prop shaft (1991 -1993).











                                           #22623                        #22624          #21651       #22625
                                      Forward & Pinion Set             Reverse Gear   Thrust Washer  Clutch Dog
                           COMPLETE GEAR SET
                           - Forward/Pinion/Reverse              GLM #22622              OEM #986980
                           - 14/26 teeth
                           - Comes with the GLM #22625 clutch


                           FORWARD & PINION SET
                           - May be used with OMC reverse gear   GLM #22623              OEM #987670
                           - 14/26 teeth


                           REVERSE GEAR
                           - May be used with OMC forward and
                             pinion gears                        GLM #22624              OEM #915723
                           - 26 teeth
                           - Includes thrust washer #21651**



                           CLUTCH                                GLM #22625              OEM #915272




                         *Except 1990 2.3L
                         **For model year 1991 OMC increased the prop shaft diameter at the carrier needle bearing (not the prop splines) from 1-
                         3/16 to 1-1/4 inches.  Some older gearcases may be fitted with the new large diameter prop shaft.  The large diameter prop
                         shaft utilizes a thrust washer (included with this gear set) between the prop shaft and reverse gear.  Discard the thrust
                         washer when using the small diameter prop shaft.
                     It is recommended that the above standard duty replacement gears be used only
                     with the four-cylinder and V6 powered sterndrives listed below:


                      3.0L/181CI     4-Cyl. Chev.         1990-93              GLM recommends the
                                                                               heavy-duty gearset #22666 for
                      4.3L/262CI     V6     Chev.         1986-93              all V8 powered sterndrives.



                                                www.glmmarine.com                                                   43
