P. 67

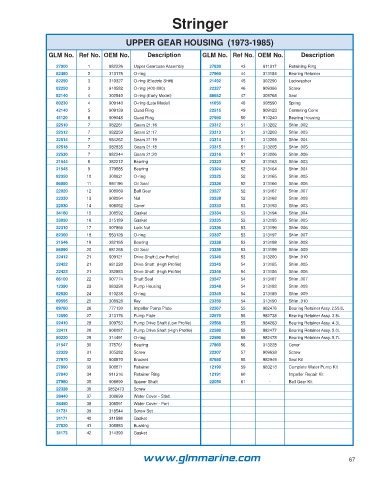

Stringer



                                           UPPER GEAR HOUSING  (1973-1985)

                 GLM No. Ref No. OEM No.          Description       GLM No. Ref No. OEM No.          Description
                    27000     1      982226  Upper Gearcase Assembly  27830      43     911317   Retaining Ring
                    82480     2      313175  O-ring                   27960      44     313184   Bearing Retainer
                    82250     3      310327  O-ring (Electric Shift)  21492      45     302290   Lockwasher
                    82250     3      910582  O-ring (400-800)         22327      46     909386   Screw
                    82140     4      302540  O-ring (Early Model)     86652      47     308768   Seal
                    80230     4      909140  O-ring (Late Model)      11056      48     308590   Spring
                    42140     5      909139  Quad Ring                22515      49     909123   Centering Cone
                    41120     6      909048  Quad Ring                27950      50     910240   Bearing Housing
                    22510     7      982261  Gears 21:16              23312      51     313202   Shim .002
                    22512     7      982259  Gears 21:17              23313      51     313203   Shim .003
                    22514     7      984262  Gears 21:19              23314      51     313204   Shim .004
                    22518     7      982835  Gears 21:18              23315      51     313205   Shim .005
                    22530     7      982244  Gears 21:20              23316      51     313206   Shim .006
                    21544     8      382212  Bearing                  23323      52     313163   Shim .003
                    21545     9      379585  Bearing                  23324      52     313164   Shim .004
                    82350     10     308621  O-ring                   23325      52     313165   Shim .005
                    86080     11     981196  Oil Seal                 23326      52     313166   Shim .006
                    22020     12     908069  Ball Gear                23327      52     313167   Shim .007
                    22330     13     908064  Nut                      23328      52     313168   Shim .008
                    22030     14     908052  Cover                    23333      53     313193   Shim .003
                    34180     15     308592  Gasket                   23334      53     313194   Shim .004
                    33050     16     315189  Gasket                   23335      53     313195   Shim .005
                    22310     17     907866  Lock Nut                 23336      53     313196   Shim .006
                    82360     18     553126  O-ring                   23337      53     313197   Shim .007
                    21546     19     382165  Bearing                  23338      53     313198   Shim .008
                    86090     20     981268  Oil Seal                 23339      53     313199   Shim .009
                    22412     21     909121  Drive Shaft (Low Profile)  23340    53     313200   Shim .010
                    22422     21     981220  Drive Shaft  (High Profile)  23345  54     313185   Shim .005
                    22423     21     382883  Drive Shaft  (High Profile)  23346  54     313186   Shim .006
                    86100     22     907774  Shaft Seal               23347      54     313187   Shim .007
                    12390     23     983298  Pump Housing             23348      54     313188   Shim .008
                    82520     24     910238  O-ring                   23349      54     313189   Shim .009
                    89595     25     308928  Key                      23350      54     313190   Shim .010
                    89760     26     777130  Impeller Pump Plate      22567      55     982476   Bearing Retainer Assy. 2.5/3.0L
                    12590     27     313176  Pump Plate               22570      55     982738   Bearing Retainer Assy. 3.8L
                    22410     28     909753  Pump Drive Shaft (Low Profile)  22568  55  984263   Bearing Retainer Assy. 4.3L
                    22411     28     908087  Pump Drive Shaft (High Profile)  22580  55  982477  Bearing Retainer Assy. 5.0L
                    80220     29     314491  O-ring                   22590      55     982478   Bearing Retainer Assy. 5.7L
                    21547     30     375761  Bearing                  27860      56     313228   Cover
                    22329     31     305282  Screw                    22307      57     909638   Screw
                    27970     32     908870  Bracket                  87650      58     982949   Seal Kit
                    27990     33     908871  Retainer                 12190      59     983218   Complete Water Pump Kit
                    27840     34     911316  Retainer Ring            12191      60       -      Impeller Repair Kit
                    27980     35     908890  Spacer Shaft             22050      61       -      Ball Gear Kit
                    22328     36     3852473  Screw
                    28440     37     308699  Water Cover - Stbd.
                    28450     38     308591  Water Cover - Port
                    21731     39     318544  Screw Set
                    31171     40     311598  Gasket
                    27820     41     308883  Bushing
                    31173     42     314390  Gasket


                                                www.glmmarine.com                                                   67
