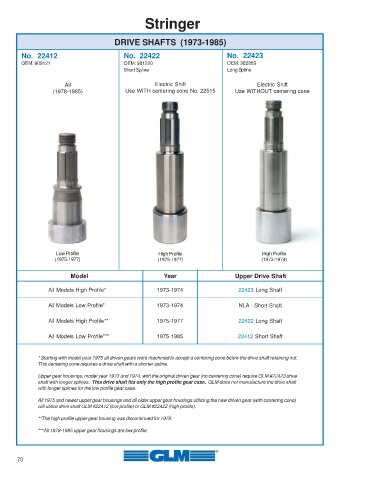

P. 70

Stringer



                                       DRIVE SHAFTS  (1973-1985)

        No.  22412                        No.  22422                        No.  22423
        OEM: 909121                       OEM: 981220                       OEM: 382883
                                          Short Spline                      Long Spline

                      All                           Electric Shift                    Electric Shift
                  (1978-1985)             Use WITH centering cone No. 22515    Use WITHOUT centering cone
































                    Low Profile                      High Profile                       High Profile
                   (1975-1977)                       (1975-1977)                        (1973-1974)

                        Model                          Year                    Upper Drive Shaft

                 All Models High Profile*            1973-1974                  22423 Long Shaft

                 All Models Low Profile*             1973-1974                  NLA - Short Shaft


                 All Models High Profile**           1975-1977                  22422 Long Shaft

                 All Models Low Profile***           1975-1985                  22412 Short Shaft


              * Starting with model year 1975 all driven gears were machined to accept a centering cone below the drive shaft retaining nut.
              This centering cone requires a drive shaft with a shorter spline.

              Upper gear housings, model year 1973 and 1974, with the original driven gear (no centering cone) require GLM #22423 drive
              shaft with longer splines.  This drive shaft fits only the high profile gear case.  GLM does not manufacture the drive shaft
              with longer splines for the low profile gear case.
              All 1975 and newer upper gear housings and all older upper gear housings utilizing the new driven gear (with centering cone)
              will utilize drive shaft GLM #22412 (low profile) or GLM #22422 (high profile).

              **The high profile upper gear housing was discontinued for 1978.
              ***All 1978-1985 upper gear housings are low profile.




       70
