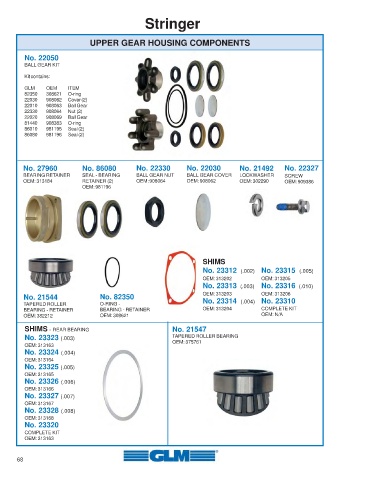

Stringer

UPPER GEAR HOUSING COMPONENTS

No. 22050
BALL GEAR KIT
Kit contains:

GLM OEM ITEM
82350 308621 O-ring
22030 908062 Cover (2)
22010 908063 Ball Gear
22330 908064 Nut (2)
22020 908069 Ball Gear
81440 908383 O-ring
86010 981195 Seal (2)
86080 981196 Seal (2)

No. 27960 No. 86080 No. 22330 No. 22030 No. 21492 No. 22327
BEARING RETAINER SEAL - BEARING BALL GEAR NUT BALL GEAR COVER LOCKWASHER SCREW
OEM: 313184 RETAINER (2) OEM: 908064 OEM: 908062 OEM: 302290 OEM: 909386
OEM: 981196

SHIMS
No. 23312 (.002) No. 23315 (.005)
OEM: 313202 OEM: 313205
No. 23313 (.003) No. 23316 (.010)
No. 21544 No. 82350 OEM: 313203 OEM: 313206
TAPERED ROLLER O-RING - No. 23314 (.004) No. 23310
BEARING - RETAINER BEARING - RETAINER OEM: 313204 COMPLETE KIT
OEM: 382212 OEM: 308621 OEM: N/A

SHIMS - REAR BEARING No. 21547
No. 23323 (.003) TAPERED ROLLER BEARING
OEM: 313163 OEM: 375761
No. 23324 (.004)
OEM: 313164
No. 23325 (.005)
OEM: 313165
No. 23326 (.006)
OEM: 313166
No. 23327 (.007)
OEM: 313167
No. 23328 (.008)
OEM: 313168
No. 23320
COMPLETE KIT
OEM: 313163

68
