Johnson / Evinrude

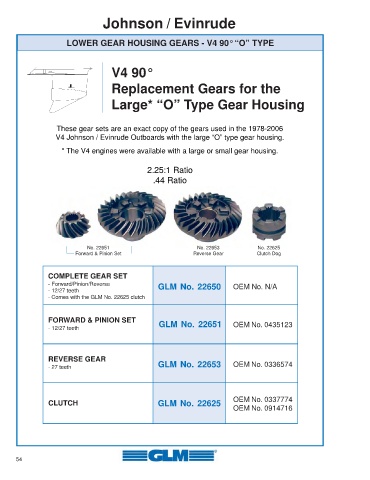

                       LOWER GEAR HOUSING GEARS - V4 90° “O” TYPE




                                      V4 90°

                                      Replacement Gears for the

                                      Large* “O” Type Gear Housing




                    These gear sets are an exact copy of the gears used in the 1978-2006
                   V4 Johnson / Evinrude Outboards with the large “O” type gear housing.
                     * The V4 engines were available with a large or small gear housing.


                                                  2.25:1 Ratio
                                                    .44 Ratio












                              No. 22651                           No. 22653           No. 22625
                          Forward & Pinion Set                   Reverse Gear         Clutch Dog


                 COMPLETE GEAR SET
                 - Forward/Pinion/Reverse            GLM No. 22650            OEM No. N/A
                 - 12/27 teeth
                 - Comes with the GLM No. 22625 clutch


                 FORWARD & PINION SET                 GLM No. 22651
                 - 12/27 teeth                                                OEM No. 0435123




                 REVERSE GEAR
                 - 27 teeth                          GLM No. 22653            OEM No. 0336574





                                                                              OEM No. 0337774
                 CLUTCH                              GLM No. 22625
                                                                              OEM No. 0914716
