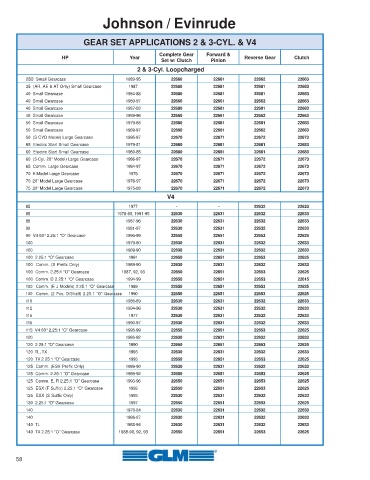

Page 58 - JohnEvin_Catalog_Flipbook
P. 58
Johnson / Evinrude
GEAR SET APPLICATIONS 2 & 3-CYL. & V4
Complete Gear Forward &
HP Year Reverse Gear Clutch
Set w/ Clutch Pinion
2 & 3-Cyl. Loopcharged
25D Small Gearcase 1989-95 22660 22661 22662 22663
35 (AR, AE & AT Only) Small Gearcase 1987 22680 22681 22681 22683
40 Small Gearcase 1984-88 22680 22681 22681 22683
40 Small Gearcase 1989-97 22660 22661 22662 22663
48 Small Gearcase 1987-88 22680 22681 22681 22683
48 Small Gearcase 1989-96 22660 22661 22662 22663
50 Small Gearcase 1979-88 22680 22681 22681 22683
50 Small Gearcase 1989-97 22660 22661 22662 22663
50 (S CYD Model) Large Gearcase 1995-97 22670 22671 22672 22673
55 Electric Start Small Gearcase 1979-81 22680 22681 22681 22683
60 Electric Start Small Gearcase 1980-85 22680 22681 22681 22683
60 (3-Cyl. 20” Model) Large Gearcase 1986-97 22670 22671 22672 22673
65 Comm. Large Gearcase 1984-97 22670 22671 22672 22673
70 E Model Large Gearcase 1975 22670 22671 22672 22673
70 20” Model Large Gearcase 1976-97 22670 22671 22672 22673
75 20” Model Large Gearcase 1975-88 22670 22671 22672 22673
V4
85 1977 - - 22632 22633
85 1978-80, 1991-95 22630 22631 22632 22633
88 1987-96 22630 22631 22632 22633
90 1981-97 22630 22631 22632 22633
90 V4 60° 2.25:1 “O” Gearcase 1995-99 22650 22651 22653 22625
100 1979-80 22630 22631 22632 22633
100 1989-90 22630 22631 22632 22633
100 2.25:1 “O” Gearcase 1991 22650 22651 22653 22625
100 Comm. (S Prefix Only) 1989-90 22630 22631 22632 22633
100 Comm. 2.25:1 “O” Gearcase 1987, 92, 93 22650 22651 22653 22625
100 Comm. D 2.25:1 “O” Gearcase 1994-99 22650 22651 22653 22615
100 Comm. (E J Models) 2.25:1 “O” Gearcase 1989 22650 22651 22653 22625
100 Comm. (2 Pcs. D/Shaft) 2.25:1 “O” Gearcase 1990 22650 22651 22653 22625
110 1986-89 22630 22631 22632 22633
112 1994-96 22630 22631 22632 22633
115 1977 22630 22631 22632 22633
115 1990-97 22630 22631 22632 22633
115 V4 60° 2.25:1 “O” Gearcase 1995-99 22650 22651 22653 22625
120 1986-92 22630 22631 22632 22633
120 2.25:1 “O” Gearcase 1990 22650 22651 22653 22625
120 TL, TX 1993 22630 22631 22632 22633
120 TX 2.25:1 “O” Gearcase 1993 22650 22651 22653 22625
125 Comm. (ESX Prefix Only) 1989-90 22630 22631 22632 22633
125 Comm. 2.25:1 “O” Gearcase 1989-92 22650 22651 22653 22625
125 Comm. E, R 2.25:1 “O” Gearcase 1993-96 22650 22651 22653 22625
125 ESX (F Suffix) 2.25:1 “O” Gearcase 1993 22650 22651 22653 22625
125 ESX (S Suffix Only) 1993 22630 22631 22632 22633
130 2.25:1 “O” Gearcase 1997 22650 22651 22653 22625
140 1978-84 22630 22631 22632 22633
140 1986-87 22630 22631 22632 22633
140 TL 1988-94 22630 22631 22632 22633
140 TX 2.25:1 “O” Gearcase 1988-90, 92, 93 22650 22651 22653 22625
58
