Johnson / Evinrude

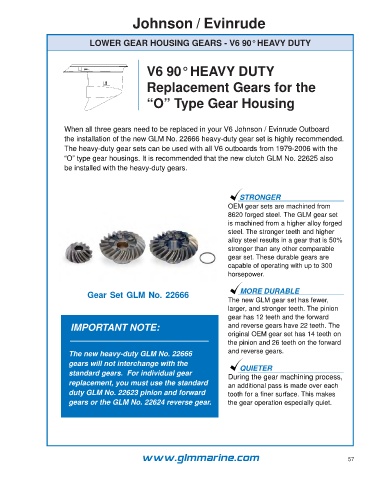

LOWER GEAR HOUSING GEARS - V6 90° HEAVY DUTY

V6 90° HEAVY DUTY

Replacement Gears for the

“O” Type Gear Housing

When all three gears need to be replaced in your V6 Johnson / Evinrude Outboard
the installation of the new GLM No. 22666 heavy-duty gear set is highly recommended.
The heavy-duty gear sets can be used with all V6 outboards from 1979-2006 with the
“O” type gear housings. It is recommended that the new clutch GLM No. 22625 also
be installed with the heavy-duty gears.

STRONGER
OEM gear sets are machined from
8620 forged steel. The GLM gear set
is machined from a higher alloy forged
steel. The stronger teeth and higher
alloy steel results in a gear that is 50%
stronger than any other comparable
gear set. These durable gears are
capable of operating with up to 300
horsepower.

Gear Set GLM No. 22666 MORE DURABLE
The new GLM gear set has fewer,
larger, and stronger teeth. The pinion
gear has 12 teeth and the forward
IMPORTANT NOTE: and reverse gears have 22 teeth. The
original OEM gear set has 14 teeth on
the pinion and 26 teeth on the forward
The new heavy-duty GLM No. 22666 and reverse gears.
gears will not interchange with the QUIETER
standard gears. For individual gear During the gear machining process,
replacement, you must use the standard an additional pass is made over each
duty GLM No. 22623 pinion and forward tooth for a finer surface. This makes
gears or the GLM No. 22624 reverse gear. the gear operation especially quiet.
