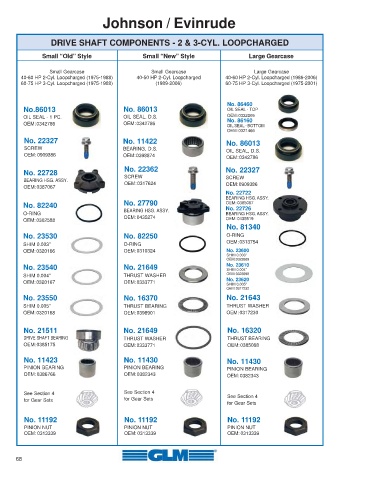

Page 68 - JohnEvin_Catalog_Flipbook

Johnson / Evinrude

DRIVE SHAFT COMPONENTS - 2 & 3-CYL. LOOPCHARGED

Small “Old” Style Small “New” Style Large Gearcase

Small Gearcase Small Gearcase Large Gearcase
40-60 HP 2-Cyl. Loopcharged (1975-1988) 40-50 HP 2-Cyl. Loopcharged 40-60 HP 2-Cyl. Loopcharged (1986-2006)
60-75 HP 3-Cyl. Loopcharged (1975-1988) (1989-2006) 60-75 HP 3-Cyl. Loopcharged (1975-2001)

No. 86460
No.86013 No. 86013 OIL SEAL - TOP
OIL SEAL - 1 PC. OIL SEAL, D.S. OEM: 0332205
No. 86160
OEM: 0342786 OEM: 0342786 OIL SEAL - BOTTOM
OEM: 0321466
No. 22327 No. 11422 No. 86013
SCREW BEARING, D.S. OIL SEAL, D.S.
OEM: 0909386 OEM: 0398874 OEM: 0342786

No. 22362 No. 22327
No. 22728
BEARING HSG. ASSY. SCREW SCREW
OEM: 0317624
OEM: 0387067 OEM: 0909386
No. 22722
BEARING HSG. ASSY.
No. 82240 No. 27790 OEM: 0385087
BEARING HSG. ASSY. No. 22726
O-RING BEARING HSG. ASSY.
OEM: 0302588 OEM: 0435274 OEM: 0435519
No. 81340
No. 23530 No. 82250 O-RING
SHIM 0.003” O-RING OEM: 0313754
OEM: 0320166 OEM: 0310324 No. 23600
SHIM 0.003”
OEM: 0323889
No. 23540 No. 21649 No. 23610
SHIM 0.004”
SHIM 0.004” THRUST WASHER OEM: 0323890
OEM: 0320167 OEM: 0333771 No. 23620
SHIM 0.005”
OEM: 0317232
No. 23550 No. 16370 No. 21643
SHIM 0.005” THRUST BEARING THRUST WASHER
OEM: 0320168 OEM: 0398901 OEM: 0317230

No. 21511 No. 21649 No. 16320
DRIVE SHAFT BEARING THRUST WASHER THRUST BEARING
OEM: 0385175 OEM: 0333771 OEM: 0385068

No. 11423 No. 11430 No. 11430
PINION BEARING PINION BEARING PINION BEARING
OEM: 0386766 OEM: 0382343 OEM: 0382343

See Section 4 See Section 4 See Section 4
for Gear Sets for Gear Sets
for Gear Sets

No. 11192 No. 11192 No. 11192
PINION NUT PINION NUT PINION NUT
OEM: 0313339 OEM: 0313339 OEM: 0313339

68
