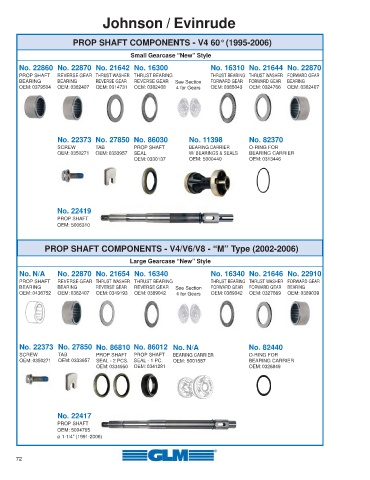

Page 72 - JohnEvin_Catalog_Flipbook
P. 72
Johnson / Evinrude
PROP SHAFT COMPONENTS - V4 60° (1995-2006)
Small Gearcase “New” Style
No. 22860 No. 22870 No. 21642 No. 16300 No. 16310 No. 21644 No. 22870
PROP SHAFT REVERSE GEAR THRUST WASHER THRUST BEARING THRUST BEARING THRUST WASHER FORWARD GEAR
BEARING BEARING REVERSE GEAR REVERSE GEAR See Section FORWARD GEAR FORWARD GEAR BEARING
OEM: 0379504 OEM: 0382407 OEM: 0314731 OEM: 0382408 4 for Gears OEM: 0385043 OEM: 0324766 OEM: 0382407
No. 22373 No. 27850 No. 86030 No. 11398 No. 82370
SCREW TAB PROP SHAFT BEARING CARRIER O-RING FOR
OEM: 0350271 OEM: 0333957 SEAL W/ BEARINGS & SEALS BEARING CARRIER
OEM: 0330137 OEM: 5000440 OEM: 0313446
No. 22419
PROP SHAFT
OEM: 5006310
PROP SHAFT COMPONENTS - V4/V6/V8 - “M” Type (2002-2006)
Large Gearcase “New” Style
No. N/A No. 22870 No. 21654 No. 16340 No. 16340 No. 21646 No. 22910
PROP SHAFT REVERSE GEAR THRUST WASHER THRUST BEARING THRUST BEARING THRUST WASHER FORWARD GEAR
BEARING BEARING REVERSE GEAR REVERSE GEAR See Section FORWARD GEAR FORWARD GEAR BEARING
OEM: 0436752 OEM: 0382407 OEM: 0349193 OEM: 0389042 4 for Gears OEM: 0389042 OEM: 0327669 OEM: 0389039
No. 22373 No. 27850 No. 86810 No. 86012 No. N/A No. 82440
SCREW TAB PROP SHAFT PROP SHAFT BEARING CARRIER O-RING FOR
OEM: 0350271 OEM: 0333957 SEAL - 2 PCS. SEAL - 1 PC. OEM: 5001587 BEARING CARRIER
OEM: 0334950 OEM: 0341281 OEM: 0326849
No. 22417
PROP SHAFT
OEM: 5004765
ø 1-1/4” (1991-2006)
