Johnson / Evinrude

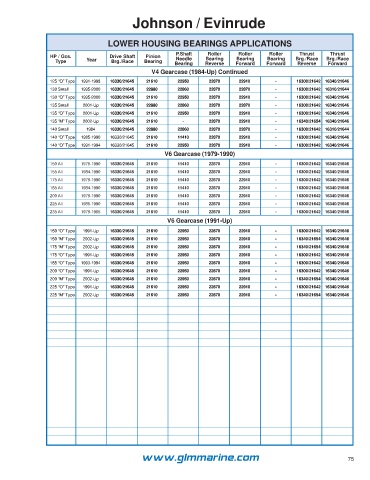

LOWER HOUSING BEARINGS APPLICATIONS
P.Shaft Roller Roller Roller Thrust Thrust
HP / Gcs. Drive Shaft Pinion Needle Bearing Bearing Bearing Brg./Race Brg./Race
Type Year Brg./Race Bearing Bearing Reverse Forward Forward Reverse Forward
V4 Gearcase (1984-Up) Continued
125 “O” Type 1991-1998 16330/21645 21610 22950 22870 22910 - 16300/21642 16340/21646
130 Small 1995-2000 16330/21645 22880 22860 22870 22870 - 16300/21642 16310/21644
130 “O” Type 1995-2000 16330/21645 21610 22950 22870 22910 - 16300/21642 16340/21646
135 Small 2001-Up 16330/21645 22880 22860 22870 22870 - 16300/21642 16340/21646
135 “O” Type 2001-Up 16330/21645 21610 22950 22870 22910 - 16300/21642 16340/21646
135 “M” Type 2002-Up 16330/21645 21610 - 22870 22910 - 16340/21654 16340/21646
140 Small 1984 16330/21645 22880 22860 22870 22870 - 16300/21642 16310/21644
140 “O” Type 1985-1990 16330/21645 21610 11410 22870 22910 - 16300/21642 16340/21646
140 “O” Type 1991-1994 16330/21645 21610 22950 22870 22910 - 16300/21642 16340/21646
V6 Gearcase (1979-1990)
150 All 1979-1990 16330/21645 21610 11410 22870 22910 - 16300/21642 16340/21646
155 All 1984-1990 16330/21645 21610 11410 22870 22910 - 16300/21642 16340/21646
175 All 1979-1990 16330/21645 21610 11410 22870 22910 - 16300/21642 16340/21646
185 All 1984-1990 16330/21645 21610 11410 22870 22910 - 16300/21642 16340/21646
200 All 1979-1990 16330/21645 21610 11410 22870 22910 - 16300/21642 16340/21646
225 All 1986-1990 16330/21645 21610 11410 22870 22910 - 16300/21642 16340/21646
235 All 1979-1985 16330/21645 21610 11410 22870 22910 - 16300/21642 16340/21646
V6 Gearcase (1991-Up)
150 “O” Type 1991-Up 16330/21645 21610 22950 22870 22910 - 16300/21642 16340/21646
150 “M” Type 2002-Up 16330/21645 21610 22950 22870 22910 - 16340/21654 16340/21646
175 “M” Type 2002-Up 16330/21645 21610 22950 22870 22910 - 16340/21654 16340/21646
175 “O” Type 1991-Up 16330/21645 21610 22950 22870 22910 - 16300/21642 16340/21646
185 “O” Type 1993-1994 16330/21645 21610 22950 22870 22910 - 16300/21642 16340/21646
200 “O” Type 1991-Up 16330/21645 21610 22950 22870 22910 - 16300/21642 16340/21646
200 “M” Type 2002-Up 16330/21645 21610 22950 22870 22910 - 16340/21654 16340/21646
225 “O” Type 1991-Up 16330/21645 21610 22950 22870 22910 - 16300/21642 16340/21646
225 “M” Type 2002-Up 16330/21645 21610 22950 22870 22910 - 16340/21654 16340/21646

www.glmmarine.com 75
