Johnson / Evinrude

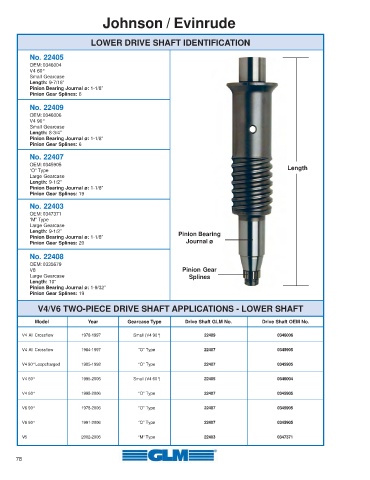

LOWER DRIVE SHAFT IDENTIFICATION

No. 22405
OEM: 0346004
V4 60°
Small Gearcase
Length: 9-7/16”
Pinion Bearing Journal ø: 1-1/8”
Pinion Gear Splines: 6
No. 22409
OEM: 0346006
V4 90°
Small Gearcase
Length: 8-3/4”
Pinion Bearing Journal ø: 1-1/8”
Pinion Gear Splines: 6

No. 22407
OEM: 0345905 Length
“O” Type
Large Gearcase
Length: 9-1/2”
Pinion Bearing Journal ø: 1-1/8”
Pinion Gear Splines: 19

No. 22403
OEM: 0347371
“M” Type
Large Gearcase
Length: 9-1/2” Pinion Bearing
Pinion Bearing Journal ø: 1-1/8”
Pinion Gear Splines: 20 Journal ø
No. 22408
OEM: 0335679
V8 Pinion Gear
Large Gearcase Splines
Length: 10”
Pinion Bearing Journal ø: 1-9/32”
Pinion Gear Splines: 19

V4/V6 TWO-PIECE DRIVE SHAFT APPLICATIONS - LOWER SHAFT

Model Year Gearcase Type Drive Shaft GLM No. Drive Shaft OEM No.

V4 All Crossflow 1978-1997 Small (V4 90°) 22409 0346006

V4 All Crossflow 1984-1997 “O” Type 22407 0345905

V4 90° Loopcharged 1985-1998 “O” Type 22407 0345905

V4 60° 1995-2006 Small (V4 60°) 22405 0346004

V4 60° 1995-2006 “O” Type 22407 0345905

V6 90° 1978-2006 “O” Type 22407 0345905

V6 60° 1991-2006 “O” Type 22407 0345905

V6 2002-2006 “M” Type 22403 0347371
