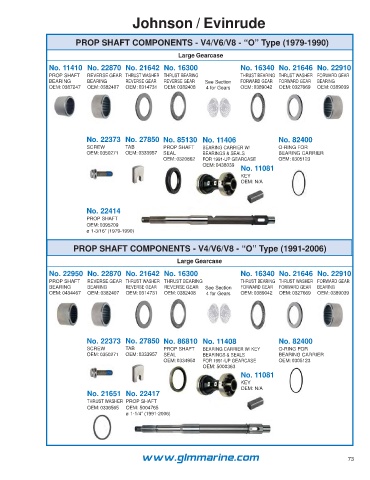

Johnson / Evinrude

PROP SHAFT COMPONENTS - V4/V6/V8 - “O” Type (1979-1990)

Large Gearcase
No. 11410 No. 22870 No. 21642 No. 16300 No. 16340 No. 21646 No. 22910
PROP SHAFT REVERSE GEAR THRUST WASHER THRUST BEARING THRUST BEARING THRUST WASHER FORWARD GEAR
BEARING BEARING REVERSE GEAR REVERSE GEAR See Section FORWARD GEAR FORWARD GEAR BEARING
OEM: 0387247 OEM: 0382407 OEM: 0314731 OEM: 0382408 4 for Gears OEM: 0389042 OEM: 0327669 OEM: 0389039

No. 22373 No. 27850 No. 85130 No. 11406 No. 82400
SCREW TAB PROP SHAFT BEARING CARRIER W/ O-RING FOR
OEM: 0350271 OEM: 0333957 SEAL BEARINGS & SEALS BEARING CARRIER
OEM: 0320862 FOR 1991-UP GEARCASE OEM: 0305123
OEM: 0438039
No. 11081
KEY
OEM: N/A

No. 22414
PROP SHAFT
OEM: 0395209
ø 1-3/16” (1979-1990)

PROP SHAFT COMPONENTS - V4/V6/V8 - “O” Type (1991-2006)

Large Gearcase

No. 22950 No. 22870 No. 21642 No. 16300 No. 16340 No. 21646 No. 22910
PROP SHAFT REVERSE GEAR THRUST WASHER THRUST BEARING THRUST BEARING THRUST WASHER FORWARD GEAR
BEARING BEARING REVERSE GEAR REVERSE GEAR See Section FORWARD GEAR FORWARD GEAR BEARING
OEM: 0434467 OEM: 0382407 OEM: 0314731 OEM: 0382408 4 for Gears OEM: 0389042 OEM: 0327669 OEM: 0389039

No. 22373 No. 27850 No. 86810 No. 11408 No. 82400
SCREW TAB PROP SHAFT BEARING CARRIER W/ KEY O-RING FOR
OEM: 0350271 OEM: 0333957 SEAL BEARINGS & SEALS BEARING CARRIER
OEM: 0334950 FOR 1991-UP GEARCASE OEM: 0305123
OEM: 5000363
No. 11081
KEY
OEM: N/A
No. 21651 No. 22417
THRUST WASHER PROP SHAFT
OEM: 0336565 OEM: 5004765
ø 1-1/4” (1991-2006)
