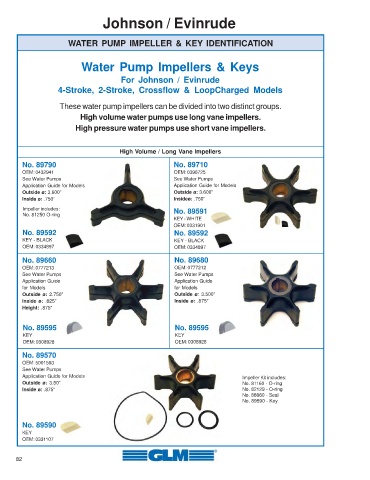

Johnson / Evinrude

WATER PUMP IMPELLER & KEY IDENTIFICATION

Water Pump Impellers & Keys

For Johnson / Evinrude
4-Stroke, 2-Stroke, Crossflow & LoopCharged Models

These water pump impellers can be divided into two distinct groups.
High volume water pumps use long vane impellers.

High pressure water pumps use short vane impellers.

High Volume / Long Vane Impellers

No. 89790 No. 89710
OEM: 0432941 OEM: 0396725
See Water Pumps See Water Pumps
Application Guide for Models Application Guide for Models
Outside ø: 3.600” Outside ø: 3.600”
Inside ø: .750” Insideø: .750”
Impeller includes: No. 89591
No. 81250 O-ring
KEY - WHITE
OEM: 0331901
No. 89592 No. 89592
KEY - BLACK KEY - BLACK
OEM: 0334897 OEM: 0334897

No. 89660 No. 89680
OEM: 0777213 OEM: 0777212
See Water Pumps See Water Pumps
Application Guide Application Guide
for Models for Models
Outside ø: 2.750” Outside ø: 3.500”
Inside ø: .625” Inside ø: .875”
Height: .875”

No. 89595 No. 89595
KEY KEY
OEM: 0308928 OEM: 0308928
No. 89570
OEM: 5001593
See Water Pumps
Application Guide for Models Impeller Kit includes:
Outside ø: 3.50” No. 81160 - O-ring
Inside ø: .875” No. 82129 - O-ring
No. 86660 - Seal
No. 89590 - Key

No. 89590
KEY
OEM: 0331107

82
