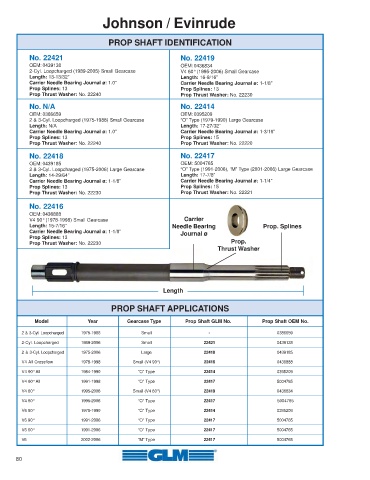

Page 80 - JohnEvin_Catalog_Flipbook

Johnson / Evinrude

PROP SHAFT IDENTIFICATION

No. 22421 No. 22419
OEM: 0439138 OEM: 0436834
2-Cyl. Loopcharged (1989-2005) Small Gearcase V4 60° (1995-2006) Small Gearcase
Length: 13-13/32” Length: 16-9/16”
Carrier Needle Bearing Journal ø: 1.0” Carrier Needle Bearing Journal ø: 1-1/8”
Prop Splines: 13 Prop Splines: 13
Prop Thrust Washer: No. 22240 Prop Thrust Washer: No. 22230
No. N/A No. 22414
OEM: 0386659 OEM: 0395209
2 & 3-Cyl. Loopcharged (1975-1988) Small Gearcase “O” Type (1979-1990) Large Gearcase
Length: N/A Length: 17-27/32”
Carrier Needle Bearing Journal ø: 1.0” Carrier Needle Bearing Journal ø: 1-3/16”
Prop Splines: 13 Prop Splines: 15
Prop Thrust Washer: No. 22240 Prop Thrust Washer: No. 22220
No. 22418 No. 22417
OEM: 0439185 OEM: 5004765
2 & 3-Cyl. Loopcharged (1975-2006) Large Gearcase “O” Type (1991-2006), “M” Type (2001-2006) Large Gearcase
Length: 14-29/64” Length: 17-7/8”
Carrier Needle Bearing Journal ø: 1-1/8” Carrier Needle Bearing Journal ø: 1-1/4”
Prop Splines: 13 Prop Splines: 15
Prop Thrust Washer: No. 22230 Prop Thrust Washer: No. 22221

No. 22416
OEM: 0436888
V4 90° (1978-1998) Small Gearcase Carrier
Length: 15-7/16” Needle Bearing Prop. Splines
Carrier Needle Bearing Journal ø: 1-1/8” Journal ø
Prop Splines: 13
Prop Thrust Washer: No. 22230 Prop.
Thrust Washer

Length

PROP SHAFT APPLICATIONS

Model Year Gearcase Type Prop Shaft GLM No. Prop Shaft OEM No.
2 & 3-Cyl. Loopcharged 1975-1988 Small - 0386659
2-Cyl. Loopcharged 1989-2006 Small 22421 0439138
2 & 3-Cyl. Loopcharged 1975-2006 Large 22418 0439185
V4 All Crossflow 1978-1998 Small (V4 90°) 22416 0436888
V4 90° All 1984-1990 “O” Type 22414 0395209
V4 90° All 1991-1998 “O” Type 22417 5004765
V4 60° 1995-2006 Small (V4 60°) 22419 0436834
V4 60° 1995-2006 “O” Type 22417 5004765
V6 90° 1978-1990 “O” Type 22414 0395209
V6 90° 1991-2006 “O” Type 22417 5004765
V6 60° 1991-2006 “O” Type 22417 5004765
V6 2002-2006 “M” Type 22417 5004765
