MerCruiser

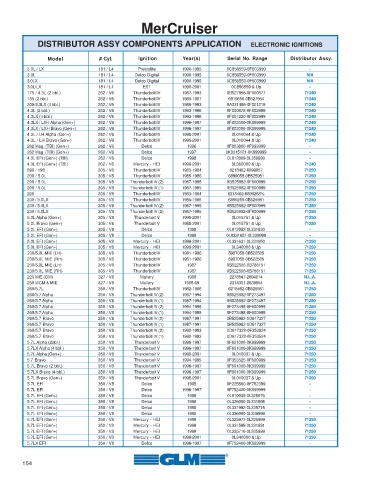

DISTRIBUTOR ASSY COMPONENTS APPLICATION ELECTRONIC IGNITIONS

Model # Cyl. Ignition Year(s) Serial No. Range Distributor Assy.
3.0L / LX 181 / L4 Prestolite 1990-1995 0C856559-0F603999 -
3.0L 181 / L4 Delco Digital 1990-1995 0C856559-0F603999 N/A
3.0LX 181 / L4 Delco Digital 1990-1995 0C856559-0F603999 N/A
3.0L/LX 181 / L4 EST 1990-2001 0C856559 & Up -
175 / 4.3L (2 bbl.) 262 / V6 Thunderbolt IV 1987-1993 0B527955-0F000877 71240
185 (2 bbl.) 262 / V6 Thunderbolt IV 1985-1987 6919656-0B527954 71240
205/4.3LX (4 bbl.) 262 / V6 Thunderbolt IV 1985-1993 0A331455-0F001219 71240
4.3L (2 bbl.) 262 / V6 Thunderbolt IV 1993-1996 0F000878-0F802999 71240
4.3LX (4 bbl.) 262 / V6 Thunderbolt IV 1993-1996 0F001220-0F802999 71240
4.3LX / LXH Alpha (Gen+) 262 / V6 Thunderbolt IV 1996-1997 0F803000-0K999999 71240
4.3LX / LXH Bravo (Gen+) 262 / V6 Thunderbolt IV 1996-1997 0F803000-0K999999 71240
4.3L / LH Alpha (Gen+) 262 / V6 Thunderbolt IV 1998-2001 0L010044 & Up 71240
4.3L / LH Bravo (Gen+) 262 / V6 Thunderbolt IV 1998-2001 0L010044 & Up 71240
262 Mag. (TBI) (Gen+) 262 / V6 Delco 1996 0F803800-0F999999 -
262 Mag. (TBI) (Gen+) 262 / V6 Delco 1997 0K0015121-0K999999 -
4.3L EFI (Gen+) (TBI) 262 / V6 Delco 1998 0L012009-0L359999 -
4.3L EFI (Gen+) (TBI) 262 / V6 Mercury - HEI 1999-2001 0L360000 & Up 71240
898 / 198 305 / V8 Thunderbolt IV 1983-1984 6218462-6899057 71250
200 / 5.0L 305 / V8 Thunderbolt IV 1985-1986 6899058-0B525981 71250
200 / 5.0L 305 / V8 Thunderbolt IV (2) 1987-1995 0B525982-0F600999 71250
200 / 5.0L 305 / V8 Thunderbolt IV (1) 1987-1995 0B525982-0F600999 71250
228 305 / V8 Thunderbolt IV 1983-1984 6218462-6899268% 71250
230 / 5.0LX 305 / V8 Thunderbolt IV 1985-1986 6899269-0B525981 71250
230 / 5.0LX 305 / V8 Thunderbolt IV (2) 1987-1995 0B525982-0F600999 71250
230 / 5.0LX 305 / V8 Thunderbolt IV (2) 1987-1995 0B525982-0F600999 71250
5.0L Alpha (Gen+) 305 / V8 Thunderbolt V 1998-2001 0L015751 & Up 71250
5.0L Bravo (Gen+) 305 / V8 Thunderbolt V 1988-2001 0L015751 & Up 71250
5.0L EFI (Gen+) 305 / V8 Delco 1998 0L012052-0L331630 -
5.0L EFI (Gen+) 305 / V8 Delco 1998 0L0331651-0L339999 -
5.0L EFI (Gen+) 305 / V8 Mercury - HEI 1999-2001 0L331631-0L331650 71250
5.0L EFI (Gen+) 305 / V8 Mercury - HEI 1999-2001 0L340000 & Up 71250
230/5.0L MIE (LH) 305 / V8 Thunderbolt IV 1981-1986 5907058-0B522505 71250
230/5.0L MIE (RH) 305 / V8 Thunderbolt IV 1981-1986 5907058-0B522505 71250
230/5.0L MIE (LH) 305 / V8 Thunderbolt IV 1987 0B522506-0B788151 71250
230/5.0L MIE (RH) 305 / V8 Thunderbolt IV 1987 0B522506-0B788151 71250
225 MIE (GM) 327 / V8 Mallory 1968 2278647-2694014 N.L.A.
250 MCM & MIE 327 / V8 Mallory 1968-69 2314301-2639854 N.L.A.
260/5.7L 350 / V8 Thunderbolt IV 1982-1986 6218462-0B525981 71250
260/5.7 Alpha 350 / V8 Thunderbolt IV (2) 1987-1994 0B525982-0F273497 71250
260/5.7 Alpha 350 / V8 Thunderbolt IV (1) 1987-1994 0B525982-0F273497 71250
260/5.7 Alpha 350 / V8 Thunderbolt IV (2) 1994-1995 0F273498-0F600999 71250
260/5.7 Alpha 350 / V8 Thunderbolt IV (1) 1994-1995 0F273498-0F600999 71250
260/5.7 Bravo 350 / V8 Thunderbolt IV (2) 1987-1991 0B525982-0D617327 71250
260/5.7 Bravo 350 / V8 Thunderbolt IV (1) 1987-1991 0B525982-0D617327 71250
260/5.7 Bravo 350 / V8 Thunderbolt IV (2) 1992-1993 0D617328-0F353524 71250
260/5.7 Bravo 350 / V8 Thunderbolt IV (1) 1992-1993 0D617328-0F353524 71250
5.7L Alpha (2bbl.) 350 / V8 Thunderbolt V 1996-1997 0F601000-0K999999 71250
5.7LX Alpha (4 bbl.) 350 / V8 Thunderbolt V 1996-1997 0F601000-0K999999 71250
5.7L Alpha (Gen+) 350 / V8 Thunderbolt V 1998-2001 0L010037 & Up 71250
5.7 Bravo 350 / V8 Thunderbolt V 1994-1995 0F353525-0F600999 71250
5.7L Bravo (2 bbl.) 350 / V8 Thunderbolt V 1996-1997 0F601000-0K999999 71250
5.7LX Bravo (4 bbl.) 350 / V8 Thunderbolt V 1996-1997 0F601000-0K999999 71250
5.7L Bravo (Gen+) 350 / V8 Thunderbolt V 1998-2001 0L010037 & Up 71250
5.7L EFI 350 / V8 Delco 1995 0F225560-0F752399 -
5.7L EFI 350 / V8 Delco 1996-1997 0F752400-0K999999 -
5.7L EFI (Gen+) 350 / V8 Delco 1998 0L010035-0L325976 -
5.7L EFI (Gen+) 350 / V8 Delco 1998 0L326000-0L331598 -
5.7L EFI (Gen+) 350 / V8 Delco 1998 0L331992-0L335715 -
5.7L EFI (Gen+) 350 / V8 Delco 1998 0L336000-0L339999 -
5.7L EFI (Gen+) 350 / V8 Mercury - HEI 1999 0L325977-0L325999 71250
5.7L EFI (Gen+) 350 / V8 Mercury - HEI 1999 0L331599-0L331991 71250
5.7L EFI (Gen+) 350 / V8 Mercury - HEI 1999 0L335716-0L335999 71250
5.7L EFI (Gen+) 350 / V8 Mercury - HEI 1999-2001 0L340000 & Up 71250
5.7LX EFI 350 / V8 Delco 1996-1997 0F752400-0K999999 -

154
