P. 155
MerCruiser

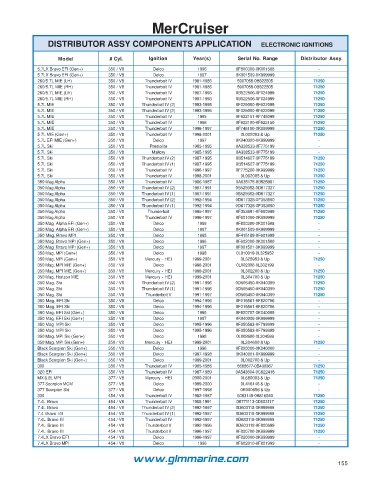

DISTRIBUTOR ASSY COMPONENTS APPLICATION ELECTRONIC IGNITIONS
Model # Cyl. Ignition Year(s) Serial No. Range Distributor Assy.
5.7LX Bravo EFI (Gen+) 350 / V8 Delco 1996 0F800300-0K001508 -
5.7LX Bravo EFI (Gen+) 350 / V8 Delco 1997 0K001509-0K999999 -
260/5.7L MIE (LH) 350 / V8 Thunderbolt IV 1981-1986 5907058-0B522505 71250
260/5.7L MIE (RH) 350 / V8 Thunderbolt IV 1981-1986 5907058-0B522505 71250
260/5.7L MIE (LH) 350 / V8 Thunderbolt IV 1987-1993 0B522506-0F024999 71250
260/5.7L MIE (RH) 350 / V8 Thunderbolt IV 1987-1993 0B522506-0F024999 71250
5.7L MIE 350 / V8 Thunderbolt IV (2) 1993-1995 0F025000-0F622099 71250
5.7L MIE 350 / V8 Thunderbolt IV (2) 1993-1995 0F025000-0F622099 71250
5.7L MIE 350 / V8 Thunderbolt IV 1995 0F622151-0F746099 71250
5.7L MIE 350 / V8 Thunderbolt IV 1996 0F622100-0F622150 71250
5.7L MIE 350 / V8 Thunderbolt IV 1996-1997 0F746100-0K999999 71250
5.7L MIE (Gen+) 350 / V8 Thunderbolt IV 1998-2001 0L002003 & Up 71250
5.7L EFI MIE (Gen+) 350 / V8 Delco 1997 0K040300-0K999999 -
5.7L Ski 350 / V8 Prestolite 1985-1995 0A338533-0F775199 -
5.7L Ski 350 / V8 Mallory 1985-1995 0A338533-0F775199 -
5.7L Ski 350 / V8 Thunderbolt IV (2) 1987-1995 0B514627-0F775199 71250
5.7L Ski 350 / V8 Thunderbolt IV (1) 1987-1995 0B514627-0F775199 71250
5.7L Ski 350 / V8 Thunderbolt IV 1996-1997 0F775200-0K999999 71250
5.7L Ski 350 / V8 Thunderbolt IV 1998-2001 0L002005 & Up 71250
350 Mag Alpha 350 / V8 Thunderbolt IV 1986-1987 0A635178-0B525981 71250
350 Mag Alpha 350 / V8 Thunderbolt IV (2) 1987-1991 0B525982-0D617327 71250
350 Mag Alpha 350 / V8 Thunderbolt IV (1) 1987-1991 0B525982-0D617327 71250
350 Mag Alpha 350 / V8 Thunderbolt IV (2) 1992-1994 0D617328-0F353690 71250
350 Mag Alpha 350 / V8 Thunderbolt IV (1) 1992-1994 0D617328-0F353690 71250
350 Mag Alpha 350 / V8 Thunderbolt 1995-1997 0F353691-0F600999 71250
350 Mag Alpha 350 / V8 Thunderbolt IV 1996-1997 0F601000-0K999999 71250
350 Mag. Alpha EFI (Gen+) 350 / V8 Delco 1996 0F800300-0K001508 -
350 Mag. Alpha EFI (Gen+) 350 / V8 Delco 1997 0K001509-0K999999 -
350 Mag. Bravo MPI 350 / V8 Delco 1995 0F415189-0F601999 -
350 Mag. Bravo MPI (Gen+) 350 / V8 Delco 1996 0F602000-0K001500 -
350 Mag. Bravo MPI (Gen+) 350 / V8 Delco 1997 0F001501-0K999999 -
350 Mag. MPI (Gen+) 350 / V8 Delco 1998 0L010019-0L325952 -
350 Mag. MPI (Gen+) 350 / V8 Mercury - HEI 1999-2001 0L325953 & Up 71250
350 Mag. MPI MIE (Gen+) 350 / V8 Delco 1998-2001 0L002008-0L302199 -
350 Mag. MPI MIE (Gen+) 350 / V8 Mercury - HEI 1998-2001 0L302200 & Up 71250
350 Mag. Horizon MIE 350 / V8 Mercury - HEI 1999-2001 0L304700 & Up 71250
350 Mag. Ski 350 / V8 Thunderbolt IV (2) 1991-1996 0D505450-0K040399 71250
350 Mag. Ski 350 / V8 Thunderbolt IV (1) 1991-1996 0D505450-0K040399 71250
350 Mag. Ski 350 / V8 Thunderbolt V 1991-1997 0D505450-0K040399 71250
350 Mag. EFI Ski 350 / V8 Delco 1994-1996 0F215561-0F820706 -
350 Mag. EFI Ski 350 / V8 Delco 1994-1996 0F215561-0F820706 -
350 Mag. EFI Ski (Gen+) 350 / V8 Delco 1996 0F820707-0K040005 -
350 Mag. EFI Ski (Gen+) 350 / V8 Delco 1997 0K040006-0K999999 -
350 Mag. MPI Ski 350 / V8 Delco 1995-1996 0F350583-0F799999 -
350 Mag. MPI Ski 350 / V8 Delco 1995-1996 0F350583-0F799999 -
350 Mag. MPI Ski (Gen+) 350 / V8 Delco 1998 0L002600-0L304599 -
350 Mag. MPI Ski (Gen+) 350 / V8 Mercury - HEI 1999-2001 0L304600 & Up 71250
Black Scorpion Ski (Gen+) 350 / V8 Delco 1996 0F800000-0K040000 -
Black Scorpion Ski (Gen+) 350 / V8 Delco 1997-1998 0K040001-0K999999 -
Black Scorpion Ski (Gen+) 350 / V8 Delco 1999-2001 0L002700 & Up -
300 350 / V8 Thunderbolt IV 1985-1986 6668677-0B430367 71250
320 EFI 350 / V8 Thunderbolt IV 1987-1989 0A543604-0C622418 71250
MX 6.2L MPI 377 / V8 Mercury - HEI 2000-2001 0L680003 & Up 71250
377 Scorpion MCM 377 / V8 Delco 1999-2000 0L416146 & Up -
377 Scorpion Ski 377 / V8 Delco 1997-1998 0K000656 & Up -
330 454 / V8 Thunderbolt IV 1982-1987 6083145-0B816540 71250
7.4L Bravo 454 / V8 Thunderbolt IV 1988-1991 0B771113-0D603117 71250
7.4L Bravo 454 / V8 Thunderbolt IV (2) 1992-1997 0D603118-0K999999 71250
7.4 Bravo I/II 454 / V8 Thunderbolt IV (1) 1992-1997 0D603118-0K999999 71250
7.4L Bravo III 454 / V8 Thunderbolt IV 1992-1997 0D683118-0K999999 71250
7.4L Bravo III 454 / V8 Thunderbolt V 1992-1996 0D603118-0F800699 71250
7.4L Bravo III 454 / V8 Thunderbolt V 1996-1997 0F800700-0K999999 71250
7.4LX Bravo EFI 454 / V8 Delco 1996-1997 0F820000-0K999999 -
7.4LX Bravo MPI 454 / V8 Delco 1996 0F602010-0F801999 -
www.glmmarine.com
155
