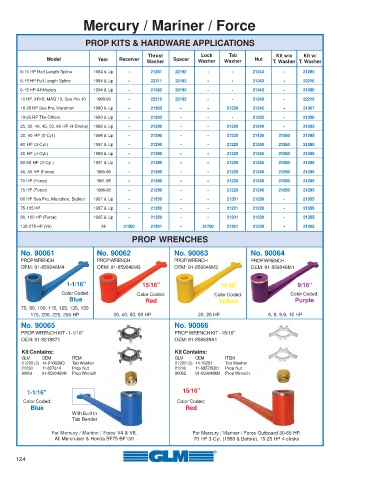

Page 124 - MercMarForc_Catalog_Flipbook

Mercury / Mariner / Force

PROP KITS & HARDWARE APPLICATIONS

Thrust Lock Tab Kit w/o Kit w/
Model Year Receiver Washer Spacer Washer Washer Nut T. Washer T. Washer
6-15 HP Half Length Spline 1984 & Up - 21281 22192 - - 21243 - 21285
6-15 HP Full Length Spline 1984 & Up - 22211 22192 - - 21243 - 22216
6-15 HP All Models 1994 & Up - 21282 22192 - - 21243 - 21286
10 HP, XR10, MAG 10, Sea Pro 10 1990-93 - 22210 22192 - - 21243 - 22215
18-25 HP Sea Pro, Marathon 1980 & Up - 21303 - - 21220 21242 - 21307
18-25 HP The Others 1980 & Up - 21303 - - - 21232 - 21306
25, 30, 40, 45, 50, 60 HP (4-Stroke) 1998 & Up - 21290 - - 21220 21240 - 21295
30, 40 HP (2-Cyl.) 1994 & Up - 21290 - - 21220 21420 21260 21295
40 HP (3-Cyl.) 1997 & Up - 21290 - - 21220 21240 21260 21295
40 HP (4-Cyl.) 1989 & Up - 21290 - - 21220 21240 21260 21295
50-60 HP (3-Cyl.) 1991 & Up - 21290 - - 21220 21240 21260 21295
40, 50 HP (Force) 1995-99 - 21290 - - 21220 21240 21260 21295
70 HP (Force) 1991-95 - 21290 - - 21220 21240 21260 21295
75 HP (Force) 1986-98 - 21290 - - 21220 21240 21260 21295
60 HP Sea Pro, Marathon, Bigfoot 1987 & Up - 21350 - - 21201 21230 - 21355
75-125 HP 1987 & Up - 21350 - - 21201 21230 - 21355
90, 120 HP (Force) 1995 & Up - 21350 - - 21201 21230 - 21355
135-275 HP (V6) All 21360 21301 - 21760 21201 21230 - 21305
PROP WRENCHES

No. 90061 No. 90062 No. 90063 No. 90064
PROP WRENCH PROP WRENCH PROP WRENCH PROP WRENCH
OEM: 91-859046M4 OEM: 91-859046M3 OEM: 91-859046M2 OEM: 91-859046M1

1-1/16” 15/16” 13/16” 9/16”
Color Coded: Color Coded: Color Coded: Color Coded:
Blue Red Yellow Purple
75, 90, 100, 115, 125, 135, 150
175, 200, 225, 250 HP 30, 40, 50, 60 HP 20, 25 HP 6, 8, 9.9, 15 HP
No. 90065 No. 90066
PROP WRENCH KIT - 1-1/16” PROP WRENCH KIT - 15/16”
OEM: 91-8218871 OEM: 91-856639A1
Kit Contains: Kit Contains:
GLM OEM ITEM GLM OEM ITEM
21200 (2) 14-816629Q Tab Washer 21220 (2) 14-76281 Tab Washer
21230 11-827614 Prop Nut 21240 11-69578Q01 Prop Nut
90061 91-859046M4 Prop Wrench 90062 91-859046M3 Prop Wrench

1-1/16” 15/16”
Color Coded: Color Coded:
Blue Red
With Built In
Tab Bender

For Mercury / Mariner / Force V4 & V6, For Mercury / Mariner / Force Outboard 30-65 HP,
All Mercruiser & Honda BF75-BF130 70 HP 3-Cyl. (1989 & Before), 15-25 HP 4-stroke

124
