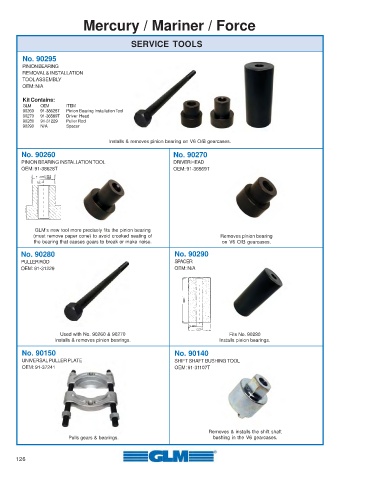

P. 126
Mercury / Mariner / Force
SERVICE TOOLS
No. 90295
PINION BEARING
REMOVAL & INSTALLATION
TOOL ASSEMBLY
OEM: N/A
Kit Contains:
GLM OEM ITEM
90260 91-38628T Pinion Bearing Installation Tool
90270 91-36569T Driver Head
90280 91-31229 Puller Rod
90290 N/A Spacer
Installs & removes pinion bearing on V6 O/B gearcases.
No. 90260 No. 90270
PINION BEARING INSTALLATION TOOL DRIVER HEAD
OEM: 91-38628T OEM: 91-36569T
GLM’s new tool more precisely fits the pinion bearing
(must remove paper cone) to avoid crooked seating of Removes pinion bearing
the bearing that causes gears to break or make noise. on V6 O/B gearcases.
No. 90280 No. 90290
PULLER ROD SPACER
OEM: 91-31229 OEM: N/A
Used with No. 90260 & 90270 Fits No. 90280
Installs & removes pinion bearings. Installs pinion bearings.
No. 90150 No. 90140
UNIVERSAL PULLER PLATE SHIFT SHAFT BUSHING TOOL
OEM: 91-37241 OEM: 91-31107T
Removes & installs the shift shaft
Pulls gears & bearings. bushing in the V6 gearcases.
126
