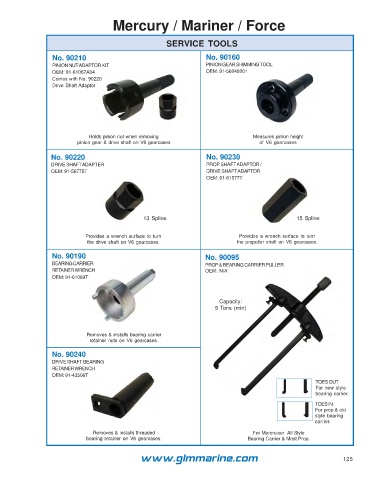

Page 125 - MercMarForc_Catalog_Flipbook

Mercury / Mariner / Force

SERVICE TOOLS

No. 90210 No. 90160
PINION NUT ADAPTOR KIT PINION GEAR SHIMMING TOOL
OEM: 91-61067A04 OEM: 91-56048001
Comes with No. 90220
Drive Shaft Adaptor

Holds pinion nut when removing Measures pinion height
pinion gear & drive shaft on V6 gearcases of V6 gearcases

No. 90220 No. 90230
DRIVE SHAFT ADAPTER PROP SHAFT ADAPTOR /
OEM: 91-56775T DRIVE SHAFT ADAPTOR
OEM: 91-61077T

13 Spline 15 Spline

Provides a wrench surface to turn Provides a wrench surface to turn
the drive shaft on V6 gearcases. the propeller shaft on V6 gearcases.

No. 90190 No. 90095
BEARING CARRIER PROP & BEARING CARRIER PULLER
RETAINER WRENCH OEM: N/A
OEM: 91-61069T

Capacity:
5 Tons (min)

Removes & installs bearing carrier
retainer nuts on V6 gearcases.
No. 90240
DRIVE SHAFT BEARING
RETAINER WRENCH
OEM: 91-43506T
TOES OUT
For new style
bearing carrier.
TOES IN
For prop & old
style bearing
carrier.

Removes & installs threaded For Mercruiser All Style
bearing retainer on V6 gearcases. Bearing Carrier & Most Prop.

www.glmmarine.com 125
