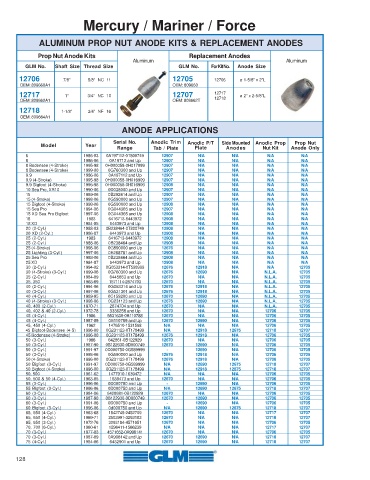

Page 128 - MercMarForc_Catalog_Flipbook

Mercury / Mariner / Force

ALUMINUM PROP NUT ANODE KITS & REPLACEMENT ANODES

Prop Nut Anode Kits Replacement Anodes
Aluminum Aluminum
GLM No. Shaft Size Thread Size GLM No. For Kit No. Anode Size
12706 7/8” 5/8” NC 11 12705 NEW 12706 ø 1-5/8” x 2”L
OEM: 809660A1 OEM: 809660
12717 1” 3/4” NC 10 12707 12717 ø 2” x 2-5/8”L
OEM: 809662A1 OEM: 809662T 12718
12718 1-1/8” 3/4” NF 16
OEM: 809664A1
ANODE APPLICATIONS

Serial No. Anodic Trim Anodic P/T Side Mounted Anodic Prop Prop Nut
Model Year Range Tab / Plate Plate Anodes Nut Kit Anode Only
6 1986-03 0A197112-0T800749 12907 N/A N/A N/A N/A
8 1986-06 0A19712 and Up 12907 N/A N/A N/A N/A
8 Bodensee (4-Stroke) 1995-98 0H000058-0H017099 12907 N/A N/A N/A N/A
8 Bodensee (4-Stroke) 1999-00 0G760300 and Up 12907 N/A N/A N/A N/A
9.9 1986-06 0A197112 and Up 12907 N/A N/A N/A N/A
9.9 (4-Stroke) 1995-98 0H000058-0H016909 12907 N/A N/A N/A N/A
9.9 Bigfoot (4-Stroke) 1995-98 0H000058-0H016909 12908 N/A N/A N/A N/A
10 Sea Pro, XR10 1990-06 0D038000 and Up 12907 N/A N/A N/A N/A
15 1989-06 0B292414 and Up 12907 N/A N/A N/A N/A
15 (4-Stroke) 1998-06 0G590000 and Up 12907 N/A N/A N/A N/A
15 Bigfoot (4-Stroke) 1998-06 0G590000 and Up 12908 N/A N/A N/A N/A
15 Sea Pro 1994-06 0G044365 and Up 12907 N/A N/A N/A N/A
15 XD Sea Pro Bigfoot 1997-06 0G044365 and Up 12908 N/A N/A N/A N/A
18 1983 6416713-6443972 12908 N/A N/A N/A N/A
18 XD 1984-85 6443973 and Up 12908 N/A N/A N/A N/A
20 (2-Cyl.) 1988-03 0B238464-0T800749 12908 N/A N/A N/A N/A
20 XD (2-Cyl.) 1986-87 6443973 and Up 12908 N/A N/A N/A N/A
25 (2-Cyl.) 1983 6416713-6443972 12908 N/A N/A N/A N/A
25 (2-Cyl.) 1988-06 0B238464 and Up 12908 N/A N/A N/A N/A
25 (4-Stroke) 1998-06 0G590000 and Up 12676 N/A N/A N/A N/A
25 Lighting (3-Cyl.) 1997-06 0E268781 and Up 12908 N/A N/A N/A N/A
25 Sea Pro 1988-06 0B238464 and Up 12908 N/A N/A N/A N/A
25 XD 1984-87 6443973 and Up 12908 N/A N/A N/A N/A
30 (2-Cyl.) 1994-02 0G053314-0T598999 12676 12918 N/A N/A 12705
30 (4-Stroke) (3-Cyl.) 1999-06 0G760300 and Up 12676 12690 N/A N.L.A. 12705
35 (2-Cyl.) 1984-89 6445653 and Up 12670 N/A N/A N.L.A. 12705
35, 350 1963-69 1571114-2874703 12670 N/A N/A N.L.A. 12705
40 (2-Cyl.) 1994-06 0G053314 and Up 12676 12918 N/A N.L.A. 12705
40 (3-Cyl.) 1997-06 0G531301 and Up 12676 12918 N/A N.L.A. 12705
40 (4-Cyl.) 1989-95 0C159200 and Up 12670 12690 N/A N.L.A. 12705
40 (4-Stroke) (3-Cyl.) 1998-06 0G231123 and Up 12676 12690 N/A N.L.A. 12705
40, 400 (2-Cyl.) 1970-71 2874704 and Up 12670 N/A N/A N.L.A. 12705
40, 402 & 40 (2-Cyl.) 1972-78 3336258 and Up 12670 N/A N/A 12706 12705
45 (4-Cyl.) 1986 5531630-0B110788 12670 N/A N/A 12706 12705
45 (4-Cyl.) 1987-89 0B110789 and Up 12670 12690 N/A 12706 12705
45, 450 (4-Cyl.) 1962 1476510-1531568 N/A N/A N/A 12706 12705
45 Bigfoot-Bodensee (4-S) 1996-00 0G231123-0T178499 N/A 12918 12675 12718 12707
45 Bodensee (4-Stroke) 1996-00 0G231123-0T178499 12676 12918 N/A 12706 12705
50 (3-Cyl.) 1986 642861-0B122929 12670 N/A N/A 12706 12705
50 (3-Cyl.) 1987-90 0B122930-0D000749 12670 12690 N/A 12706 12705
50 (3-Cyl.) 1991-97 0D000750-0G589999 - 12690 N/A 12706 12705
50 (3-Cyl.) 1998-06 0G590000 and Up 12676 12918 N/A 12706 12705
50 (4-Stroke) 1996-00 0G231123-0T178499 12676 12918 N/A 12706 12705
50 Bigfoot (3-Cyl.) 1991-97 0D000750-0G589999 N/A 12690 12675 12718 12707
50 Bigfoot (4-Stroke) 1996-00 0G231123-0T178499 N/A 12918 12675 12718 12707
50, 500 1961-62 1477910-1639472 N/A N/A N/A 12706 12705
50, 500 & 50 (4-Cyl.) 1963-85 1639473 and Up 12670 N/A N/A 12706 12705
55 (3-Cyl.) 1996-06 0D000750 and Up - 12690 N/A 12706 12705
55 Bigfoot (3-Cyl.) 1996-06 0D000750 and Up N/A 12690 12675 12718 12707
60 (3-Cyl.) 1984-86 6428681-0B122929 12670 N/A N/A 12706 12705
60 (3-Cyl.) 1987-90 0B122930-0D000749 12670 12690 N/A 12706 12705
60 (3-Cyl.) 1991-06 0D000750 and Up - 12690 N/A 12706 12705
60 Bigfoot (3-Cyl.) 1996-06 0d000750 and Up N/A 12690 12675 12718 12707
65, 650 (4-Cyl.) 1963-68 1542745-2452709 12670 N/A N/A 12717 12707
65, 650 (4-Cyl.) 1969-71 2503991-3293183 12670 N/A N/A 12718 12707
65, 650 (3-Cyl.) 1972-76 3293184-4571651 12670 N/A N/A 12706 12705
70, 700 (6-Cyl.) 1960-61 1296411-1566239 N/A N/A N/A 12717 12707
70 (3-Cyl.) 1977-83 4571652-0A996141 12670 N/A N/A 12706 12705
70 (3-Cyl.) 1987-89 0A996142 and Up 12670 12690 N/A 12718 12707
75 (4-Cyl.) 1984-86 6432901 and Up 12670 12690 N/A 12718 12707

128
