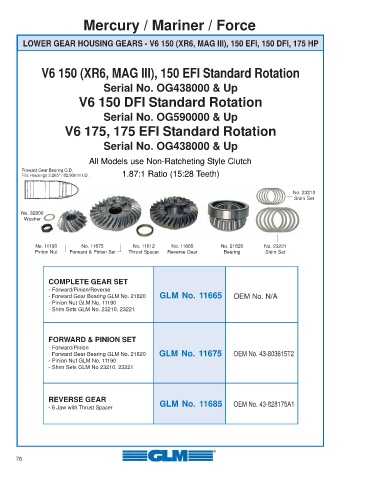

Mercury / Mariner / Force

LOWER GEAR HOUSING GEARS - V6 150 (XR6, MAG III), 150 EFI, 150 DFI, 175 HP

V6 150 (XR6, MAG III), 150 EFI Standard Rotation

Serial No. OG438000 & Up

V6 150 DFI Standard Rotation

Serial No. OG590000 & Up

V6 175, 175 EFI Standard Rotation

Serial No. OG438000 & Up

All Models use Non-Ratcheting Style Clutch

Forward Gear Bearing O.D.
Fits Housings 3.265” / 82.93mm I.D. 1.87:1 Ratio (15:28 Teeth)

No. 23210
Shim Set

No. 32800
Washer

No. 11190 No. 11675 No. 11012 No. 11685 No. 21820 No. 23221
Pinion Nut Forward & Pinion Set Thrust Spacer Reverse Gear Bearing Shim Set

COMPLETE GEAR SET
- Forward/Pinion/Reverse
- Forward Gear Bearing GLM No. 21820 GLM No. 11665 OEM No. N/A
- Pinion Nut GLM No. 11190
- Shim Sets GLM No. 23210, 23221

FORWARD & PINION SET
- Forward/Pinion
- Forward Gear Bearing GLM No. 21820 GLM No. 11675 OEM No. 43-803615T2
- Pinion Nut GLM No. 11190
- Shim Sets GLM No 23210, 23221

REVERSE GEAR GLM No. 11685
- 6 Jaw with Thrust Spacer OEM No. 43-828175A1

76
