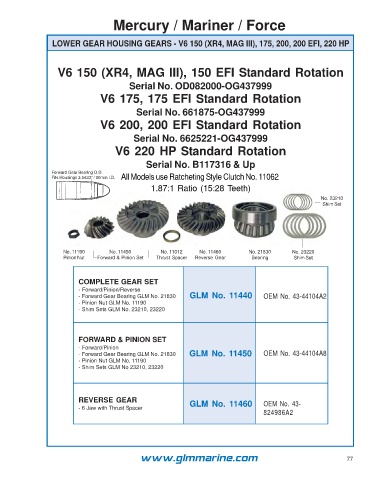

Page 77 - MercMarForc_Catalog_Flipbook

Mercury / Mariner / Force

LOWER GEAR HOUSING GEARS - V6 150 (XR4, MAG III), 175, 200, 200 EFI, 220 HP

V6 150 (XR4, MAG III), 150 EFI Standard Rotation

Serial No. OD082000-OG437999
V6 175, 175 EFI Standard Rotation

Serial No. 661875-OG437999
V6 200, 200 EFI Standard Rotation

Serial No. 6625221-OG437999

V6 220 HP Standard Rotation

Serial No. B117316 & Up
Forward Gear Bearing O.D.
Fits Housings 3.5433” / 90mm I.D. All Models use Ratcheting Style Clutch No. 11062
1.87:1 Ratio (15:28 Teeth)
No. 23210
Shim Set

No. 11190 No. 11450 No. 11012 No. 11460 No. 21830 No. 23220
Pinion Nut Forward & Pinion Set Thrust Spacer Reverse Gear Bearing Shim Set

COMPLETE GEAR SET
- Forward/Pinion/Reverse
- Forward Gear Bearing GLM No. 21830 GLM No. 11440 OEM No. 43-44104A2
- Pinion Nut GLM No. 11190
- Shim Sets GLM No. 23210, 23220

FORWARD & PINION SET
- Forward/Pinion
- Forward Gear Bearing GLM No. 21830 GLM No. 11450 OEM No. 43-44104A8
- Pinion Nut GLM No. 11190
- Shim Sets GLM No 23210, 23220

REVERSE GEAR GLM No. 11460 OEM No. 43-
- 6 Jaw with Thrust Spacer
824986A2

www.glmmarine.com 77
