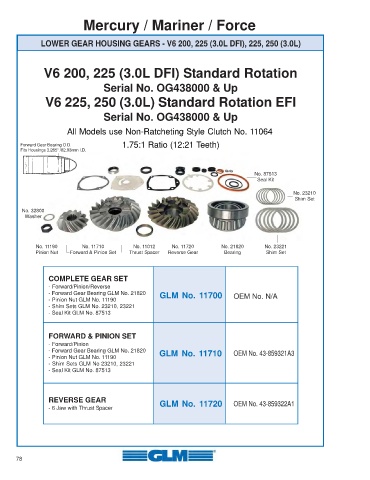

Page 78 - MercMarForc_Catalog_Flipbook

Mercury / Mariner / Force

LOWER GEAR HOUSING GEARS - V6 200, 225 (3.0L DFI), 225, 250 (3.0L)

V6 200, 225 (3.0L DFI) Standard Rotation

Serial No. OG438000 & Up

V6 225, 250 (3.0L) Standard Rotation EFI

Serial No. OG438000 & Up

All Models use Non-Ratcheting Style Clutch No. 11064

Forward Gear Bearing O.D. 1.75:1 Ratio (12:21 Teeth)
Fits Housings 3.265” /82.93mm I.D.

No. 87513
Seal Kit

No. 23210
Shim Set

No. 32800
Washer

No. 11190 No. 11710 No. 11012 No. 11720 No. 21820 No. 23221
Pinion Nut Forward & Pinion Set Thrust Spacer Reverse Gear Bearing Shim Set

COMPLETE GEAR SET
- Forward/Pinion/Reverse
- Forward Gear Bearing GLM No. 21820 GLM No. 11700 OEM No. N/A
- Pinion Nut GLM No. 11190
- Shim Sets GLM No. 23210, 23221
- Seal Kit GLM No. 87513

FORWARD & PINION SET
- Forward/Pinion
- Forward Gear Bearing GLM No. 21820 GLM No. 11710 OEM No. 43-859321A3
- Pinion Nut GLM No. 11190
- Shim Sets GLM No 23210, 23221
- Seal Kit GLM No. 87513

REVERSE GEAR GLM No. 11720 OEM No. 43-859322A1
- 6 Jaw with Thrust Spacer

78
