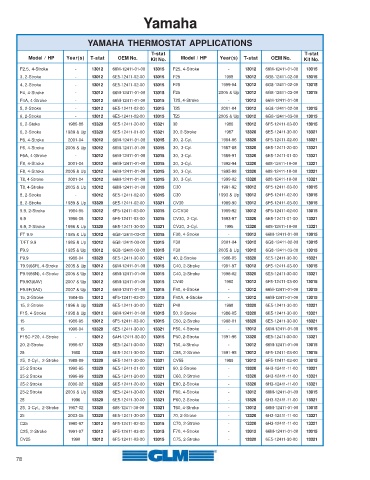

Page 78 - Yamaha_Catalog_Flipbook

Yamaha

YAMAHA THERMOSTAT APPLICATIONS
T-stat T-stat
Model / HP Year(s) T-stat OEM No. Kit No. Model / HP Year(s) T-stat OEM No. Kit No.

F2.5, 4-Stroke - 13012 66M-12411-01-00 13015 F25, 4-Stroke - 13012 66M-12411-01-00 13015
3, 2-Stroke - 13012 6E5-12411-02-00 13015 F25 1998 13012 6G8-12411-02-00 13015
4, 2-Stroke - 13012 6E5-12411-02-00 13015 F25 1999-04 13012 6G8-12411-02-00 13015
F4, 4-Stroke - 13012 66M-12411-01-00 13015 F25 2005 & Up 13012 6G8-12411-03-00 13015
F4A, 4-Stroke - 13012 66M-12411-01-00 13015 T25, 4-Stroke - 13012 66M-12411-01-00
5, 2-Stroke - 13012 6E5-12411-02-00 13015 T25 2001-04 13012 6G8-12411-02-00 13015
6, 2-Stroke - 13012 6E5-12411-02-00 13015 T25 2005 & Up 13012 6G8-12411-03-00 13015
6, 2-Stoke 1986-88 13320 6E5-12411-20-00 13321 30 1986 13012 6F5-12411-03-00 13015
6, 2-Stroke 1989 & Up 13320 6E5-12411-01-00 13321 30, 2-Stroke 1987 13320 6E5-12411-30-00 13321
F6, 4-Stroke 2001-04 13012 66M-12411-01-00 13015 30, 2-Cyl. 1984-86 13320 6F5-12411-02-00 13321
F6, 4-Stroke 2005 & Up 13012 66M-12411-01-00 13015 30, 3-Cyl. 1987-88 13320 6E5-12411-20-00 13321
F6A, 4-Stroke - 13012 66M-12411-01-00 13015 30, 3-Cyl. 1989-91 13320 6E5-12411-01-00 13321
F8, 4-Stroke 2001-04 13012 66M-12411-01-00 13015 30, 3-Cyl. 1992-94 13320 688-12411-10-00 13321
F8, 4-Stroke 2005 & Up 13012 66M-12411-01-00 13015 30, 3-Cyl. 1995-98 13320 688-12411-10-00 13321
T8, 4-Stroke 2001-04 13012 66M-12411-01-00 13015 30, 3-Cyl. 1999-02 13320 688-12411-10-00 13321
T8, 4-Stroke 2005 & Up 13012 66M-12411-01-00 13015 C30 1991-92 13012 6F5-12411-03-00 13015
8, 2-Stroke - 13012 6E5-12411-02-00 13015 C30 1993 & Up 13012 6F5-12411-02-00 13015
8, 2-Stroke 1989 & Up 13320 6E5-12411-02-00 13321 CV30 1989-90 13012 6F5-12411-03-00 13015
9.9, 2-Stroke 1984-95 13012 6F5-12411-03-00 13015 C/CV30 1989-92 13012 6F5-12411-02-00 13015
9.9 1996-05 13012 6F5-12411-03-00 13015 CV30, 2-Cyl. 1993-97 13320 6E5-12411-01-00 13321
9.9, 2-Stroke 1996 & Up 13320 6E5-12411-30-00 13321 CV30, 3-Cyl. 1995 13320 688-12411-10-00 13321
FT 9.9 1985 & Up 13012 6G8-12411-03-00 13015 F30, 4-Stroke - 13012 66M-12411-01-00 13015
T/FT 9.9 1985 & Up 13012 6G8-12411-03-00 13015 F30 2001-04 13012 6G8-12411-02-00 13015
F9.9 1985 & Up 13012 6G8-12411-03-00 13015 F30 2005 & Up 13012 6G8-12411-03-00 13015
F9.9 1986-04 13320 6E5-12411-30-00 13321 40, 2-Stroke 1986-05 13320 6E5-12411-30-00 13321
T9.9(66R), 4-Stroke 2005 & Up 13012 66M-12411-01-00 13015 C40, 2-Stroke 1991-97 13012 6F5-12411-03-00 13015
F9.9(66N), 4-Stroke 2005 & Up 13012 66M-12411-01-00 13015 C40, 2-Stroke 1998-02 13320 6E5-12411-30-00 13321
F9.9G(6AV) 2007 & Up 13012 66M-12411-01-00 13015 CV40 1990 13012 6F5-12411-03-00 13015
F9.9F(6A0) 2007 & Up 13012 66M-12411-01-00 13015 F40, 4-Stroke - 13012 66M-12411-01-00 13015
15, 2-Stroke 1984-95 13012 6F5-12411-03-00 13015 F40A, 4-Stroke - 13012 66M-12411-01-00 13015
15, 2-Stroke 1996 & Up 13320 6E5-12411-30-00 13221 P40 1998 13320 6E5-12411-30-00 13321
F15, 4-Stroke 1998 & Up 13012 66M-12411-01-00 13015 50, 2-Stroke 1986-05 13320 6E5-12411-30-00 13321
15 1986-95 13012 6F5-12411-03-00 13015 C50, 2-Stroke 1998-01 13320 6E5-12411-30-00 13321
15 1996-04 13320 6E5-12411-30-00 13321 F50, 4-Stroke - 13012 66M-12411-01-00 13015
F15C-F20, 4-Stroke - 13012 6AH-12411-00-00 13015 P50, 2-Stroke 1991-96 13320 6E5-12411-30-00 13321
20, 2-Stroke 1996-97 13320 6E5-12411-30-00 13321 T50, 4-Stroke - 13012 66M-12411-01-00 13015
25 1988 13320 6E5-12411-30-00 13321 C55, 2-Stroke 1991-95 13012 6F5-12411-03-00 13015
25, 2-Cyl., 2-Stroke 1988-89 13320 6E5-12411-30-00 13321 CV55 1989 13012 6F5-12411-03-00 13015
25-2 Stroke 1990-95 13320 6E5-12411-01-00 13321 60, 2-Stroke - 13320 6H3-12411-11-00 13321
25-2 Stroke 1996-99 13320 6E5-12411-20-00 13321 C60, 2-Stroke - 13320 6H3-12411-11-00 13321
25-2 Stroke 2000-02 13320 6E5-12411-20-00 13321 E60, 2-Stroke - 13320 6H3-12411-11-00 13321
25-2 Stroke 2003 & Up 13320 6E5-12411-30-00 13321 F60, 4-Stroke - 13012 66M-12411-01-00 13015
25 1996 13320 6E5-12411-30-00 13321 P60, 2-Stroke - 13320 6H3-12411-11-00 13321
25, 3-Cyl., 2-Stroke 1997-02 13320 688-12411-30-00 13321 T60, 4-Stroke - 13012 66M-12411-01-00 13015
25 2003-05 13320 6E5-12411-30-00 13321 70, 2-Stroke - 13320 6H3-12411-11-00 13321
C25 1990-97 13012 6F5-12411-02-00 13015 C70, 2-Stroke - 13320 6H3-12411-11-00 13321
C25, 2-Stroke 1991-97 13012 6F5-12411-03-00 13015 F70, 4-Stroke - 13012 66M-12411-01-00 13015
CV25 1990 13012 6F5-12411-03-00 13015 C75, 2-Stroke - 13320 6E5-12411-30-00 13321

78
