Page 79 - Yamaha_Catalog_Flipbook
P. 79
Yamaha

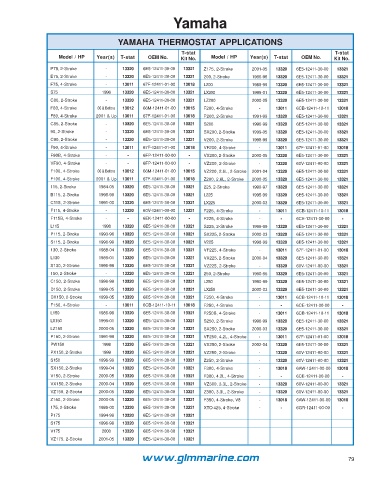

YAMAHA THERMOSTAT APPLICATIONS
T-stat T-stat
Model / HP Year(s) T-stat OEM No. Kit No. Model / HP Year(s) T-stat OEM No. Kit No.
P75, 2-Stroke - 13320 6E5-12411-30-00 13321 Z175, 2-Stroke 2001-05 13320 6E5-12411-30-00 13321
E75, 2-Stroke - 13320 6E5-12411-30-00 13321 200, 2-Stroke 1986-98 13320 6E5-12411-30-00 13321
F75, 4-Stroke - 13011 67F-12411-01-00 13018 L200 1986-99 13320 6E5-12411-30-00 13321
S75 1996 13320 6E5-12411-30-00 13321 LX200 1999-01 13320 6E5-12411-30-00 13321
C80, 2-Stroke - 13320 6E5-12411-30-00 13321 LZ200 2000-05 13320 6E5-12411-30-00 13321
F80, 4-Stroke 00 & Before 13012 66M-12411-01-00 13015 F200, 4-Stroke - 13011 6CB-12411-10-11 13018
F80, 4-Stroke 2001 & Up 13011 67F-12411-01-00 13018 P200, 2-Stroke 1991-99 13320 6E5-12411-30-00 13321
C85, 2-Stroke - 13320 6E5-12411-30-00 13321 S200 1996-99 13320 6E5-12411-30-00 13321
90, 2-Stroke - 13320 6E5-12411-30-00 13321 SX200, 2-Stroke 1999-05 13320 6E5-12411-30-00 13321
C90, 2-Stroke - 13320 6E5-12411-30-00 13321 V200, 2-Stroke 1998-99 13320 6E5-12411-30-00 13321
F90, 4-Stroke - 13011 67F-12411-01-00 13018 VF200, 4-Stroke - 13011 67F-12411-01-00 13018
F90B, 4-Stroke - - 6FP-12411-00-00 - VX200, 2-Stroke 2000-05 13320 6E5-12411-30-00 13321
VF90, 4-Stroke - - 6FP-12411-00-00 - VZ200, 2-Stroke - 13320 60V-12411-00-00 13321
F100, 4-Stroke 00 & Before 13012 66M-12411-01-00 13015 VZ200, 2.6L, 2-Stroke 2001-04 13320 6E5-12411-30-00 13321
F100, 4-Stroke 2001 & Up 13011 67F-12411-01-00 13018 Z200, 2.6L, 2-Stroke 2000-05 13320 6E5-12411-30-00 13321
115, 2-Stroke 1984-05 13320 6E5-12411-30-00 13321 225, 2-Stroke 1990-97 13320 6E5-12411-30-00 13321
B115, 2-Stroke 1998-99 13320 6E5-12411-30-00 13321 L225 1995-99 13320 6E5-12411-30-00 13321
C115, 2-Stroke 1991-00 13320 6E5-12411-30-00 13321 LX225 2000-03 13320 6E5-12411-30-00 13321
F115, 4-Stroke - 13320 60V-12411-00-00 13321 F225, 4-Stroke - 13011 6CB-12411-10-11 13018
F115B, 4-Stroke - - 6EK-12411-00-00 - F225, 4-Stroke - - 6CE-12411-00-00 -
L115 1998 13320 6E5-12411-30-00 13321 S225, 2-Stroke 1996-99 13320 6E5-12411-30-00 13321
P115, 2-Stroke 1993-96 13320 6E5-12411-30-00 13321 SX225, 2-Stroke 2000-03 13320 6E5-12411-30-00 13321
S115, 2-Stroke 1996-99 13320 6E5-12411-30-00 13321 V225 1998-99 13320 6E5-12411-30-00 13321
130, 2-Stroke 1988-04 13320 6E5-12411-30-00 13321 VF225, 4-Stroke - 13011 67F-12411-01-00 13018
L130 1989-01 13320 6E5-12411-30-00 13321 VX225, 2-Stroke 2000-04 13320 6E5-12411-30-00 13321
S130, 2-Stroke 1996-99 13320 6E5-12411-30-00 13321 VZ225, 2-Stroke - 13320 60V-12411-00-00 13321
150, 2-Stroke - 13320 6E5-12411-30-00 13321 250, 2-Stroke 1990-95 13320 6E5-12411-30-00 13321
C150, 2-Stroke 1996-99 13320 6E5-12411-30-00 13321 L250 1990-99 13320 6E5-12411-30-00 13321
D150, 2-Stroke 1999-05 13320 6E5-12411-30-00 13321 LX250 2000-03 13320 6E5-12411-30-00 13321
DX150, 2-Stroke 1999-05 13320 6E5-12411-30-00 13321 F250, 4-Stroke - 13011 6CB-12411-10-11 13018
F150, 4-Stroke - 13011 6CB-12411-10-11 13018 F250, 4-Stroke - - 6CE-12411-00-00 -
L150 1986-99 13320 6E5-12411-30-00 13321 F250B, 4-Stroke - 13011 6CB-12411-10-11 13018
LX150 1999-01 13320 6E5-12411-30-00 13321 S250, 2-Stroke 1996-99 13320 6E5-12411-30-00 13321
LZ150 2000-05 13320 6E5-12411-30-00 13321 SX250, 2-Stroke 2000-03 13320 6E5-12411-30-00 13321
P150, 2-Stroke 1991-99 13320 6E5-12411-30-00 13321 VF250, 4.2L, 4-Stroke - 13011 67F-12411-01-00 13018
PW150 1998 13320 6E5-12411-30-00 13321 VX250, 2-Stroke 2002-04 13320 6E5-12411-30-00 13321
PX150, 2-Stroke 1999 13320 6E5-12411-30-00 13321 VZ250, 2-Stroke - 13320 60V-12411-00-00 13321
S150 1996-99 13320 6E5-12411-30-00 13321 Z250, 2-Stroke - 13320 60V-12411-00-00 13321
SX150, 2-Stroke 1999-04 13320 6E5-12411-30-00 13321 F300, 4-Stroke - 13018 6AW-12411-00-00 13018
V150, 2-Stroke 2000-05 13320 6E5-12411-30-00 13321 F300, 4.2L, 4-Stroke - - 6CE-12411-00-00 -
VX150, 2-Stroke 2000-04 13320 6E5-12411-30-00 13321 VZ300, 3.3L, 2-Stroke - 13320 60V-12411-00-00 13321
VZ150, 2-Stroke 2000-05 13320 6E5-12411-30-00 13321 Z300, 3.3L, 2-Stroke - 13320 60V-12411-00-00 13321
Z150, 2-Stroke 2000-05 13320 6E5-12411-30-00 13321 F350, 4-Stroke, V8 - 13018 6AW-12411-00-00 13018
175, 2-Stroke 1986-00 13320 6E5-12411-30-00 13321 XTO 425, 4-Stroke - - 6GR-12411-00-00 -
P175 1994-99 13320 6E5-12411-30-00 13321
S175 1996-99 13320 6E5-12411-30-00 13321
V175 2000 13320 6E5-12411-30-00 13321
VZ175, 2-Stroke 2001-05 13320 6E5-12411-30-00 13321
www.glmmarine.com 79
